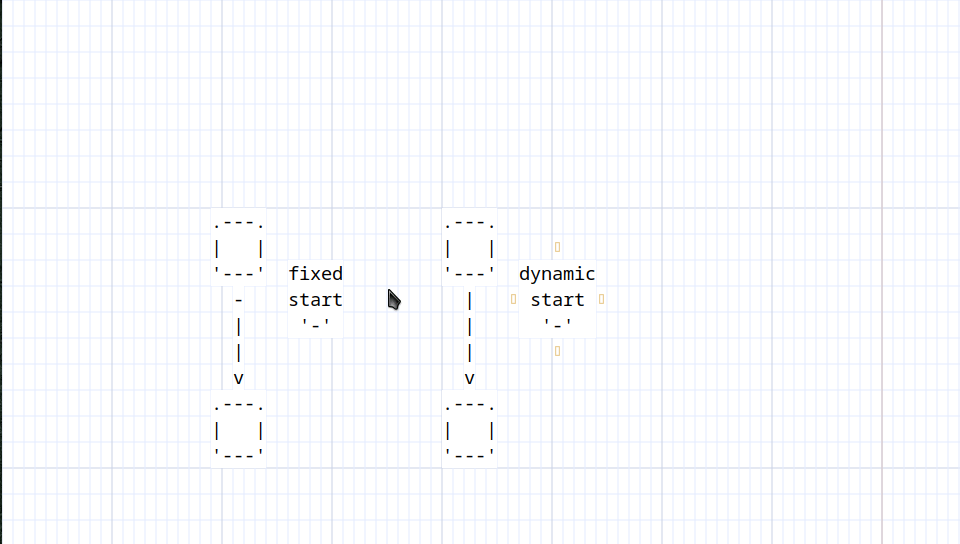

Fixed vs Dynamic Connectors
Fixed connectors remain the same regardless of arrow direction while dynamic connectors change according to the arrow direction
Example: Bindings for Both Connectors Fixed
Navigation: Index > Arrow Operations > Connectors > Both_connectors > Fixed
Prefix: Press «a» «c» «b» «f»` to enter this group
Exit: Press «Escape» to return to both connectors configuration
Fixed Connector Styles
| Operation | Binding | Description |
|---|---|---|
| Dash fixed (both) | «-» | Use dash (-) at both ends |
| Dot fixed (both) | «.» | Use dot (.) at both ends |
| Star fixed (both) | «Shift+*» | Use star (*) at both ends |
| Circle fixed small (both) | «o» | Use small circle (o) at both ends |
| Circle fixed large (both) | «Shift+O» | Use large circle (O) at both ends |
| Bullet fixed (both) | «d» | Use bullet (•) at both ends |
The same bindings exist when changing the start or the end connector.
