Introduction

    ___                               .-------.
   /   |  __________________          | Tokyo |
  / /| | / ___/ ___/ / / __ \         '-------'   .-----------.
 / ___ |(__  ) /__/ / / /_/ /             ^       | Tuju-Tuju |
/_/  |_/____/\___/_/_/\____/              |       '-----------'
                                          |             ^
                                      .-------.         |
                           .------.---| Malmö |---------'  .-------.
                           |      |   '-------'            | Korba |
                           v      |       ^                '-------'
                      .--------.  |       |     .-------.      |
                      | Dallas |  |       '-----| Paris |<-----'
                      '--------'  |             '-------'
                                  v
                             .--------.
                             | Moscow |
                             '--------'

Asciio allows you to draw ASCII diagrams in a GUI or TUI. The diagrams can be saved as ASCII text or in a format that allows you to modify them later.

Diagrams consist of boxes and text elements connected by arrows. The elements stay connected when you move them around.

Both GUI and TUI have vim-like bindings, the GUI has a few extra bindings that are usually found in GUI applications; bindings can be modified.

ASCII format is easy and universal, many tools exist to manipulate it and even transform it to other formats.

I’ve used it a lot to draw trees and graphs when my hand drawn pictures were not good enough for presentations. Having the possibility to copy and modify the graphs/diagrams makes it possible to present changes in an attractive way.

History

Asciio was born … as a dare; the cool name was coined at a conference in Oslo.

                          .------.
              .-----------| root |---------.
              |           '------'         |       other process
              |               .------------|-------------.
              v               |            v             |
            .--.              |          .--.            |
        .---'--'              |      .---'--'---.        |
        |     |               |      |          |        |
        v     |               |      v          v        |
      .--.    |      link     |    .--.       .--.       |
   .--'--'    .--------------------'--'       '--'       |
   |          |               |      |                   |
   v          |               |      v                   |
 .--.         v               |    .--.                  |
 '--'       .--.              |    '--'                  |
            '--'              |                          |
                              '--------------------------'

Accessing documentation

Asciio’s documentation is available in multiple formats

• this HTML documentation, generated by mdbook

• a manpage, available from within Asciio.

There’s also:

• a bindings list

• a short help

• a “user” defined documentation. «H» Add help box

Asciio is developed, and runs, on both Linux and Windows (cygwin).

Running asciio

$> asciio [file.asciio]       # GUI application using Gtk3

$> tasciio [file.asciio]      # TUI application

$> asciio_to_text file.asciio # converts asciio files to ASCII

$> text_to_asciio ...         # makes an asciio file from text

Command line options

Opening Asciio documents from the command line

Asciio Documents and Projects

The Asciio (tabbed) application distinguishes between two file types: individual asciio documents and asciio projects. Understanding this distinction is essential for proper file management.

File Types

Asciio Documents

Asciio documents represent individual diagrams. Each document contains:

• Drawing elements and their properties
• Setup data

Documents are loaded into individual tabs within the application interface.

Asciio Projects

Asciio projects are container that bundle multiple asciio documents together. A project file contains:

• Multiple serialized asciio documents
• Project data specifying tab count and document order

Loading Files from Command Line

Command Line Behavior

Files specified as command-line arguments are processed sequentially. The application automatically detects whether each file is a document or project.

Type Detection Mechanism

File type detection operates through document validation:

• The application attempts to open the file as an asciio project
• Open failure triggers single-document loading

This approach allows transparent handling of both file types without requiring file extension conventions or explicit type specification.

Multiple File Loading

When multiple files are provided via command line:

• Each file is processed independently
• Projects expand into multiple tabs (one per contained document)
• Asciio documents in a tab each
• All loaded files coexist in the same application session

Writing Projects

Project Structure

When saving a project, the application:

• Serializes each open tab’s asciio document
• Generates unique filenames for each document within the archive
• Creates an asciio_project data file containing document count and ordering
• Packages all components into a project file

Naming Collision Resolution

During Project Creation

The application implements collision detection when saving projects:

• Documents without titles receive automatic names (untitled_0, untitled_1, etc.)
• Duplicate names trigger automatic suffix generation using random integers (0-9999)

This ensures filesystem-safe uniqueness within the project file.

Save Operations

Project Modified State

The application tracks modifications at two levels:

• Individual document modification (tracked per tab)
• Project-level modification (tab operations, document additions/removals)

File Overwrite Protection

The save mechanism implements defensive overwrite handling:

• Existing filenames trigger confirmation dialogs
• User cancellation aborts the save operation

Application Exit

Modified Content Handling

Application termination with unsaved changes triggers:

• Detection of any modified documents or project structure
• Presentation of save/quit/cancel dialog

Document vs Project Saves

Asciio uses project-level saves during exit. Individual document modifications are captured within the project save operation. You can save individual documents at any time.

Error Handling Behavior

Non-Existent Files

When a non-existent file path is provided on the command line:

• A new empty tab is created

The application launches successfully but the non-existent file produces an empty tab, error is output to the console.

Invalid File Formats

When an existing file contains invalid or corrupted data:

• A new empty tab is created

Error Recovery

Asciio is resilient to bad input:

• Individual file failures do not prevent application launch
• Subsequent command-line files are processed
• Error messages provide diagnostic information to STDERR

Command Line Examples

Single Asciio Document

Command:

asciio diagram.ascii

Behavior:

• Application launches with one document
• no tab is displayed when a single file is loaded

Single Project

Command:

asciio project.asciios

Behavior:

• Application launches with multiple tabs (one per contained document)
• Tab labels reflect individual document names from archive
• Tab order matches the orders of the saved project

Multiple Asciio Documents

Command:

asciio doc1.asciio doc2.asciio doc3.asciio

Behavior:

• Application launches with three tabs
• Each document loads into separate sequential tab
• Tab labels: doc1.asciio, doc2.asciio, doc3.asciio

Multiple Projects

Command:

asciio project1.asciios project2.asciios

Behavior:

• Application launches with tabs from both projects
• First project’s documents load into initial tabs
• Second project’s documents append to tab bar
• Tab labels reflect individual document names
• Naming collision resolution applies if documents share names

Mixed Asciio Documents and Projects

Command:

asciio header.asciio project.asciios footer.asciio

Behavior:

• Tab sequence: header.asciio, then project documents, then footer.asciio
• Project expands into multiple consecutive tabs
• Final tab arrangement reflects command-line order

Project with Document Name Collisions

Command:

asciio project1.asciios project2.asciios

Where both projects contain a document named diagram:

Behavior:

• First diagram from project1.asciio loads with original name
• Second diagram from project2.asciio receives random suffix
• Resulting tabs: diagram, diagram_4721 (random number varies)
• Collision detection operates at session load time
• Suffix generation prevents tab label conflicts

All Invalid Files

Command:

asciio missing1.ascii0 missing2.asciio missing3.asciio

Behavior:

• Three empty tabs created
• Three error messages to STDERR
• Application remains functional
• User can immediately begin working in empty tabs
• No crash or abnormal termination

Installation

Asciio is hosted in github

Debian/Ubuntu package

Debian Package build in CI on github: debian package

apt install ./<download_path>/asciio.<version>_all.deb

Manual install on debian based distros.

See the OCI build instruction in Containerfile.

OCI image

user config

A user configuration is copied from ‘repo:OCI/Asciio’ to ‘/root/.config/Asciio/’, it can be modified to suit your needs.

pre-built image

The image is on github

Change <PATH_YOU_WANT_TO_SHARE>, if you want to save your files to your file system, before running the command below.

linux

podman run -it --net=host --env="DISPLAY" --volume="$HOME/.Xauthority:/root/.Xauthority:rw" --volume="$HOME:<PATH_YOU_WANT_TO_SHARE>" ghcr.io/nkh/p5-app-asciio:release asciio

Jypiter notebook

Example of installation and testing.

windows wsl

If using Podman, add github repository to podman in ‘/etc/containers/registries.conf’

[registries.search]
registries = ['ghcr.io']

Install an Xserver in windows. I used VcXsrv and disabled access control.

The IP of Xserv was not correct. Had to use this, to have it report the Windows host virtual IP:

export DISPLAY=$(ip route | grep default | awk '{print $3}'):0

podman run -it --net=host --env="DISPLAY" --volume="$HOME:<PATH_YOU_WANT_TO_SHARE>" p5-app-asciio:release asciio

Windows

In the windows environment, you can use asciio through msys2 or WSL or cygwin.

windows msys2 package

P5-App-Asciio-msys2, Here are the complete packaging and installation instructions.

WSL

The use of WSL is not much different from the Linux environment.However, there are some things that need attention. This link talks about how to connect to the WSL environment and execute GUI programs through remote connections under Windows.

remote_wsl_use_gui_app

Cygwin

• First install Cygwin.
• Make sure the following components are installed correctly
  • x11
  • perl
  • Gnome
  • gun-make
  • gcc-g++
• Search for “gcrypt” in all the packages to be installed, and install all the packages that appear.
• Install all dependent modules of asciio

Pay attention when installing perl modules, some may be installed through cpan, but some cannot, and can only be installed manually.

When compiling, the Makefile of several modules has an unrecognized option -lnsl. removed it when install it manually.

Start asciio by the following method:

startxwin >/dev/null 2>&1 &
export DISPLAY=:0.0
asciio

Interface

Asciio input is from mouse and keyboard bindings, they are defined in a configuration files that you can change.

Asciio’s interface is minimal by design.

keyboard bindings

This is the preferred method, and the fastest. The bindings are vim-like and which make the many bindings much easier to remember. See the Bindings section

mouse bindings

Although work can mostly be done using the keyboard, the mouse is still useful and it’s fast when creating new diagrams. See Working efficiently

popup menus

My least favorite way of using Asciio, it’s slow and cumbersome for most actions. I try to limit the amount of menu and sub menus.

UIs

Asciio offers multiple UIs

• a GUI
• a TUI (under construction)
• a command line interface

There’s even a ticket about a web interface, if you’re a websocket, rpc, minimal interface geek who like Web technology … join us!

GUI

          .-------------------------------------------------------------.
          | ........................................................... |
          | ..........-------------..------------..--------------...... |
          | .........| stencils  > || asciio   > || box          |..... |
          | .........| Rulers    > || computer > || text         |..... |
          | .........| File      > || people   > || wirl_arrow   |..... |
     grid----->......'-------------'| divers   > || axis         |..... |
          | ..................^.....'------------'| ...          |..... |
          | ..................|...................'--------------'..... |
          | ..................|........................................ |
          '-------------------|-----------------------------------------'
                              |
               context menu access some commands
               most are accessed through the keyboard

Display colors

Access the color group with binding: «zc»

Night Colors

binding: «zcs»

change grid color

binding: «zcg»

change grid background color

binding: «zcg»

Display options

display/hide grid lines

binding: «zg»

display/hide hint lines

binding: «zh»

Displays thicker lines around the selected elements to help you with alignment

Rulers

Access the rule group with binding: «ir»

display/hide ruler

binding: «zr»

Asciio Tab Management

Overview

Asciio provides a comprehensive tab-based workflow system that allows you to work with multiple documents simultaneously within a single application window. Each tab represents an independent drawing canvas, and you can organize, navigate, and manage these tabs efficiently through a variety of operations.

Bindings: Tab Management

Index

Creating New Tabs

Creating new tabs | Duplicating tabs | Closing tabs

Tab Navigation

Sequential navigation | Direct tab access | Jump to last tab

Tab Organization

Moving tabs | Renaming tabs | Tab label visibility

Project Operations

Opening projects | Saving projects | Reading files into tabs

Application Control

Exiting the application

Workflow Tips

Organizing multiple documents | Project management strategy

Handling name conflicts | Maximizing canvas space

Tab Creation and Removal

Creating New Tabs

Create a new empty tab to start a fresh drawing. The new tab is appended to the end of the tab bar and automatically receives focus.

Binding: «t» + «n»

The newly created tab begins with default canvas settings and an empty drawing surface. Tab labels are automatically shown when multiple tabs exist.

Duplicating Tabs

Clone the current tab to create an exact copy of your work. This operation duplicates all elements, their positions, properties, and the current canvas state.

Binding: «t» + «c»

The duplicated tab is created as a new tab with identical content. This is useful for creating variations of a design or maintaining snapshots of work in progress. The cloned tab is independent from the original and modifications to either tab do not affect the other.

Closing Tabs

Close operations are handled directly within each document window. Closing a tab with unsaved modifications triggers a save confirmation dialog. The application prevents accidental data loss by prompting for save actions before tab removal.

When closing the last remaining tab, the application follows its exit procedures, including project-level save prompts if modifications exist.

Tab Navigation

Sequential Navigation

Navigate through tabs in sequential order using forward and backward operations.

Binding: «t» + «t»
Move focus to the tab immediately to the right of the current tab. When viewing the rightmost tab, this operation wraps around to the leftmost tab, creating circular navigation behavior.

Binding: «t» + «Shift+T»
Move focus to the tab immediately to the left of the current tab. When viewing the leftmost tab, this operation wraps around to the rightmost tab.

Direct Tab Access

Jump directly to specific tabs by their position index. Tabs are numbered from 0 to 9, allowing instant access to the first ten tabs.

Binding: «t» + «0» through «t» + «9»

Each number key corresponds to a tab position:

• «t» + «0» focuses the first tab
• «t» + «1» focuses the second tab
• «t» + «2» focuses the third tab
• And so on through «t» + «9» for the tenth tab

If you attempt to access a tab index that doesn’t exist (for example, pressing «t» + «5» when only three tabs are open), the operation has no effect and focus remains on the current tab.

Jump to Last Tab

Quickly navigate to the rightmost tab regardless of current position.

Binding: «t» + «$»

This operation is particularly useful when working with many tabs and you need to access the most recently created tab or the last tab in your workspace.

Tab Organization

Moving Tabs

Reorder tabs within the tab bar by moving them left or right. Tab reordering is purely organizational and does not affect tab content or properties.

Binding: «t» + «h»
Moves the current tab one position to the left in the tab bar. If the current tab is already in the leftmost position, this operation has no effect.

Binding: «t» + «l»
Moves the current tab one position to the right in the tab bar. If the current tab is already in the rightmost position, this operation has no effect.

Tab movement operations preserve tab focus. After moving a tab, it remains the active tab in its new position. If a help tab is visible, the application correctly maintains its position tracking during tab reordering.

Renaming Tabs

Assign meaningful names to tabs for easier identification and organization. Tab names appear in the tab label and help distinguish between multiple documents.

Binding: «t» + «Shift+R»

The rename operation prompts for a new tab name. The provided name updates the tab label immediately. Tab names are preserved when saving projects and are used as filenames when archiving documents within project files.

If multiple tabs share the same name when saving a project, the application automatically applies numeric suffixes to ensure unique filenames within the archive.

Tab Label Visibility

Control the visibility of tab labels to maximize drawing canvas space or show tab organization.

Binding: «t» + «Shift+L»

Tab label visibility toggles between shown and hidden states. When working with a single tab, labels are automatically hidden by default since no navigation is necessary. Opening a second tab automatically shows labels to facilitate navigation.

Hidden labels do not affect tab functionality. All navigation and management operations work identically regardless of label visibility state.

Project Operations

Opening Projects

Load an existing project file into the application. Project files contain multiple documents that are extracted and opened as individual tabs.

Binding: «t» + «e»

The operation presents a file selection dialog. Upon selecting a project file, the application prompts to save any unsaved work in currently open tabs. After confirmation, existing tabs are closed and the project’s documents are loaded.

Each document from the project opens in a sequential tab with its preserved name. Tab order matches the document order stored in the project metadata. The application window title updates to reflect the opened project filename.

If the project file is invalid or corrupted, appropriate error messages are displayed and the operation is aborted.

Saving Projects

Save all open tabs as a unified project file. This operation captures the entire workspace state including all documents and their organization.

Binding: «t» + «w»

The save operation checks for modifications at both the project level (tab operations, additions, removals) and document level (content changes within tabs). If no modifications exist, the operation completes immediately without prompting.

For modified projects, the application uses the current project filename if one exists. If no project filename is associated with the current workspace, or if you explicitly request “save as” functionality, a file selection dialog appears prompting for a filename.

When saving to an existing file, a confirmation dialog asks whether to overwrite the file. Canceling at this point aborts the save operation without modifying any files.

Successful save operations reset all modification flags for both the project and individual documents.

Binding: «t» + «Shift+W»
Force the file selection dialog to appear regardless of whether a project filename already exists. This allows saving the current workspace as a new project file while preserving the original.

Reading Files into Tabs

Load individual document files or project files into the current workspace without closing existing tabs.

Binding: «t» + «r»

The read operation presents a file selection dialog. The selected file is loaded according to its type:

Single Document Files: A new tab is created and the document content is loaded into it. The new tab is appended to the end of the tab bar.

Project Files: All documents within the project are extracted and each opens in its own new tab. These tabs are appended sequentially to the existing tab bar.

Unlike the open project operation, reading files does not close existing tabs or prompt for save operations. This allows you to progressively build a workspace by loading multiple files from different sources.

If a loaded document name conflicts with an existing tab name, a numeric suffix is automatically appended to ensure unique identification.

Application Control

Exiting the Application

Close the application and terminate the session. The exit operation provides safeguards against data loss through modification checking and save prompts.

Binding: «t» + «q»

The application checks for unsaved modifications in both the project structure (tab organization changes) and individual documents (content changes). If modifications exist, a dialog appears with three options:

• Save and Quit: Saves the entire project before exiting. If no project filename exists, a file selection dialog prompts for the destination filename.
• Quit Without Saving: Exits immediately, discarding all unsaved changes.
• Cancel: Aborts the exit operation and returns to the workspace.

Binding: «t» + «Shift+Q»

This operation bypasses all save prompts and modification checks, exiting the application immediately. All unsaved work is discarded without confirmation. Use this operation only when you are certain you want to abandon current work.

Workflow Tips

Organizing Multiple Documents

When working with related documents, use tab reordering to group them logically. Position frequently accessed tabs toward the left for easier access with direct tab shortcuts («t» + «0» through «t» + «9»).

Project Management Strategy

Use the “read file” operation («t» + «r») to incrementally build a workspace from multiple sources. Once your workspace is organized, save it as a project («t» + «w») to preserve the entire configuration for future sessions.

Handling Name Conflicts

When loading multiple projects that contain identically named documents, the application automatically prevents conflicts by appending numeric suffixes. You can rename tabs afterward («t» + «Shift+R») to provide more meaningful distinctions.

Maximizing Canvas Space

When tab names are not needed for orientation, you can hide tab labels («t» + «Shift+L»). Labels can be toggled back on at any time without affecting functionality.

Asciio hides the tab label if only one tab exists.

TUI

The TUI interface is a work in progress. Drawing graphs in a terminal (without mouse) is more difficult than it seem, I’m actively working on creating better bindings to make as smooth as when using a mouse.

• mouse emulation
• differences
  • dialogs
  • manpage

Asciio TUI and Vim

You can call Asciio from vim and insert your diagram.

    map  <leader><leader>a :call TAsciio()<cr>

    function! TAsciio()
        let line = getline('.')

        let tempn = tempname()
        let tempnt = tempn . '.txt'
        let temp = shellescape(tempn)
        let tempt = shellescape(tempnt)

        exec "normal i Asciio_file:" . tempn . "\<Esc>"

        if ! has("gui_running")
        exec "silent !mkdir -p $(dirname " . temp . ")"
        exec "silent !cp ~/.config/Asciio/templates/empty.asciio ". temp . "; tasciio " . temp . "; asciio_to_text " . temp . " >" . tempt
        exec "read " . tempnt
        endif

        redraw!
    endfunction

CLI

asciio can be used and controlled from the command line.

asciio_to_text

Converts an existing ‘.asciio’ file/project to ASCII and display it in the terminal

text_to_asciio

Converts files, or text, to asciio elements.

Converting Files

text_to_asciio filename.asciio file [file ...]

The command will create a box elements containing the content each file and save it in ‘filename.asciio’.

Converting text

A text stream is read from STDIN, split into chunks, and converted into asciio elements.

The resulting asciio file is output to STDOUT.

some_command | text_to_asciio > file.asciio

In this mode, text_to_asciio accepts the following options:

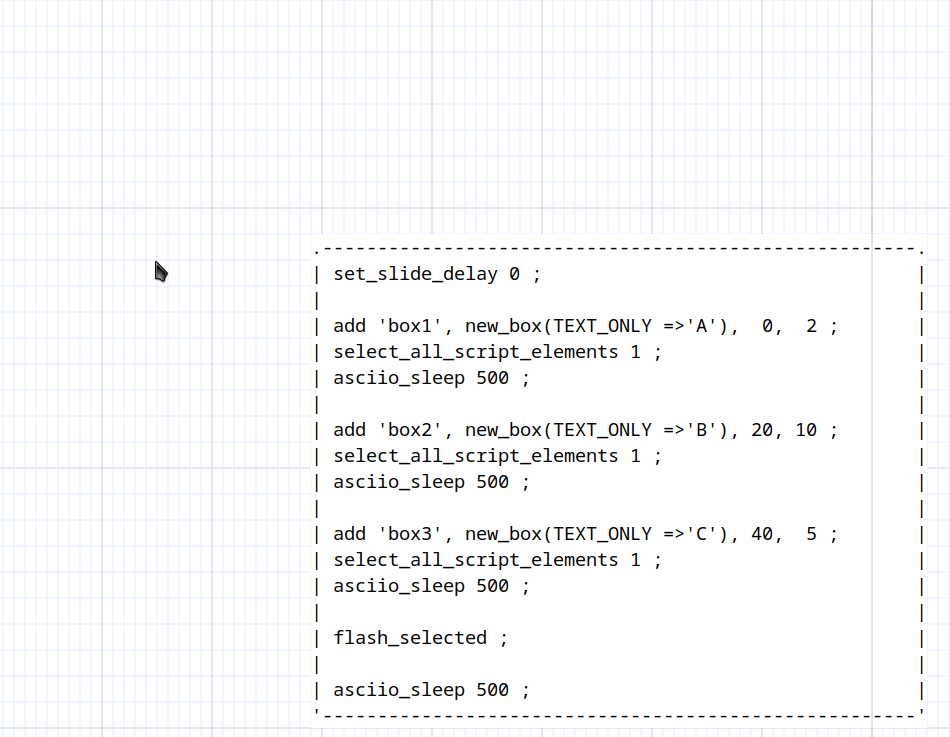

scripting interface

You can create these types of scripts for asciio:

• a script that modifies a running asciio

  • you can send script to it via a POST to asciio web server
  • you can, from the UI, choose a script to be run

• a script in which you can create an asciio, without UI, and insert elements in it

  • the result can be saved in an ‘.asciio’ file
  • the result can be printed as ASCII in your terminal

See the Scripting section for detailed information.

Unicode support

Asciio supports Unicode is a work under progress; including support for Asian languages, thanks to the co-developer who writes in these languages, but you may need a font that supports them.

https://github.com/be5invis/Sarasa-Gothic/

In the examples above the box is drawn with unicode characters, the box is oversized by design, it shrinks and expands properly.

If you want to align Thai, or Arabic, or Hebrew, under normal circumstances, the default monospaced font of the system is fine. If you find that it cannot be aligned, you can download a font that can align them.

When displayed in exported software, you also need a font that aligns them.

      .-----.      .----------------.
      | abc |----->| สวัสดีเราเคยพบกัน |
      '-----'      '----------------'
                            |
                            |
                            |
                            |   .---------------.
                            '-->| שלום, נפגשנו  |
                                '---------------'
                                        |
                                        |
      .------------------.              |
      | مرحبا هل التقينا |<-------------'
      '------------------'

Stencils

Asciio boxes

Elements

popup menu

You can access some functionality via the popup menu.

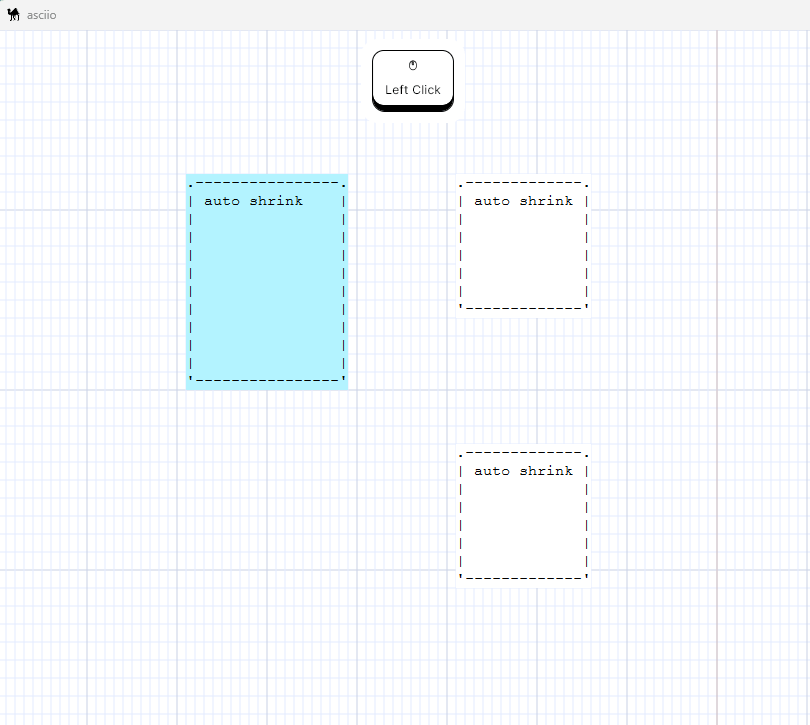

auto-shrink

If the text is changed, the size of the box will change to fit.

disable connectors

Enable or disable the possibility to connect to the box.

disable optimize

A standard box had four connectors, Asciio optimizes the arrow routes so they don’t cross the box. You can disable that optimization.

connect inside element borders

Allow connection to be made anywhere inside the element borders , not just the connectors.

rotate box/text

Types

A box

Binding: «ibb» Add box

A box with the frame drawn with Unicode characters

Binding: «iub» Add unicode box

A text

Texts are just boxes without frames.

Binding: «it» Add text

A shrink-box

A box which is already has auto-shrink set

Binding: «ibs» Add shrink box

Asciio if and process boxes

if-box and process-box

Asciio exec-boxes

An “exec-box” is and object that lets you run an external command and put its output in a box. There are different types of exec-boxes explained below.

Multi command

Binding: «ib» «ctl-e» Add exec box

The simplest exec-box accepts multiple commands, one per line. It will redirect stderr for each command.

Editing the box will let you edit the command.

Verbatim

Binding: «ib» «ctl-v» Add exec box verbatim

This exec-box doesn’t redirect stderr, you can use it for commands that span multiple line or commands that take a multi line input

Editing the box will let you edit the command.

Once

**Binding: «ib» «ctl-o» Add exec box verbatim once

This exec-box will run your commands once, editing the box will let you edit the command’s output.

Add line numbers

Binding: «ib» «ctl-l» Add line numbered box

This is an example of a custom stencil which will add line numbers to your input.

Examples

Using previously generated output

Use ‘cat your_file’ as the command in the exec-box.

Tables

If you have data you want to use in a table, the simplest is to run an external command (there are tens of ASCII table generator in perl, go, JS, …) and insert the result in a text element.

      +------------+------------+------------+------------+
      | input_size ‖ algorithmA | algorithmB | algorithmC |
      +============+============+============+============+
      |     1      ‖ 206.4 sec. | 206.4 sec. | 0.02 sec.  |
      +------------+------------+------------+------------+
      |    250     ‖     -      |  80 min.   | 2.27 sec.  |
      +------------+------------+------------+------------+

I you just want to type your table data, use an exec-box to pass your table data to you favorite Markdown formatter.

If you don’t have a favorite formatter or it doesn’t render the tables as you want them, Asciio installs md-table-formatter which may do just what you want.

md-table-formatter can render in multiple style and has some rendering options.

Insert an exec-box, remove all borders, and type the following below, you can re-edit your command later.

md-table-formatter will parse your table description, align, and format your table

cat <<EOT | md-table-formatter
| Operation              | Bg     |
| -----------                  | -----   |
| Edit selected element | douck |
| Add to selection                    | C00-1 |
| Quick link                   | 0A0-1 |
| Duplicate elements           | 0AS-1 |
| Insert flex point (in arrow) | CA0-1 |
EOT

FIGlet

Figlet generates large letters out of ordinary text.

You can specify a font with the -f option.

$ ls /usr/share/figlet/
646-ca.flc   646-hu.flc   646-se2.flc  big.flf       lean.flf      smslant.flf
646-ca2.flc  646-irv.flc  646-yu.flc   block.flf     mini.flf      standard.flf
646-cn.flc   646-it.flc   8859-2.flc   bubble.flf    mnemonic.flf  term.flf
646-cu.flc   646-jp.flc   8859-3.flc   digital.flf   moscow.flc    upper.flc
646-de.flc   646-kr.flc   8859-4.flc   frango.flc    script.flf    ushebrew.flc
646-dk.flc   646-no.flc   8859-5.flc   hz.flc        shadow.flf    uskata.flc
646-es.flc   646-no2.flc  8859-7.flc   ilhebrew.flc  slant.flf     utf8.flc
646-es2.flc  646-pt.flc   8859-8.flc   ivrit.flf     small.flf
646-fr.flc   646-pt2.flc  8859-9.flc   jis0201.flc   smscript.flf
646-gb.flc   646-se.flc   banner.flf   koi8r.flc     smshadow.flf

For example, we want to specify this font: slant

This is the exported effect:

            .-----------------------------------.
            |     _                _  _         |
            |    / \    ___   ___ (_)(_)  ___   |
            |   / _ \  / __| / __|| || | / _ \  |
            |  / ___ \ \__ \| (__ | || || (_) | |
            | /_/   \_\|___/ \___||_||_| \___/  |
            |                                   |
            '-----------------------------------'

            .------------------------------------.
            |     ___                 _  _       |
            |    /   |   _____ _____ (_)(_)____  |
            |   / /| |  / ___// ___// // // __ \ |
            |  / ___ | (__  )/ /__ / // // /_/ / |
            | /_/  |_|/____/ \___//_//_/ \____/  |
            |                                    |
            '------------------------------------'

Diagon

Diagon transforms markdown expressions into an ascii-art representation.

Mathematical Expressions

File Tree

Use exec verbatim box to input multiple lines.

plantuml

PlantUML

Asciio arrows

wirl-arrow

Rotating the end clockwise or counter-clockwise changes its direction.

multi section wirl-arrow

A set of whirl arrows connected to each other.

angled-arrow and axis

Note that an axis doesn’t connect.

Connecting lines

A specialized wirl-arrow with no head nor tail.

Non connecting lines

A specialized wirl-arrow with no head nor tail and auto-connection turned off, it’s often used to draw the table in the crossing mode.

ascii line

                    ----------------------.
                                          |
                                          |
                                          |
                                          |
                                          |

unicode line

                      ─────────────────────────╮
                                               │
                                               │
                                               │
                                               │
                                               │

unicode bold line

                        ━━━━━━━━━━━━━━━━━━━━━━━┓
                                               ┃
                                               ┃
                                               ┃
                                               ┃

unicode double line

                  ═══════════════════════════╗
                                             ║
                                             ║
                                             ║
                                             ║
                                             ║

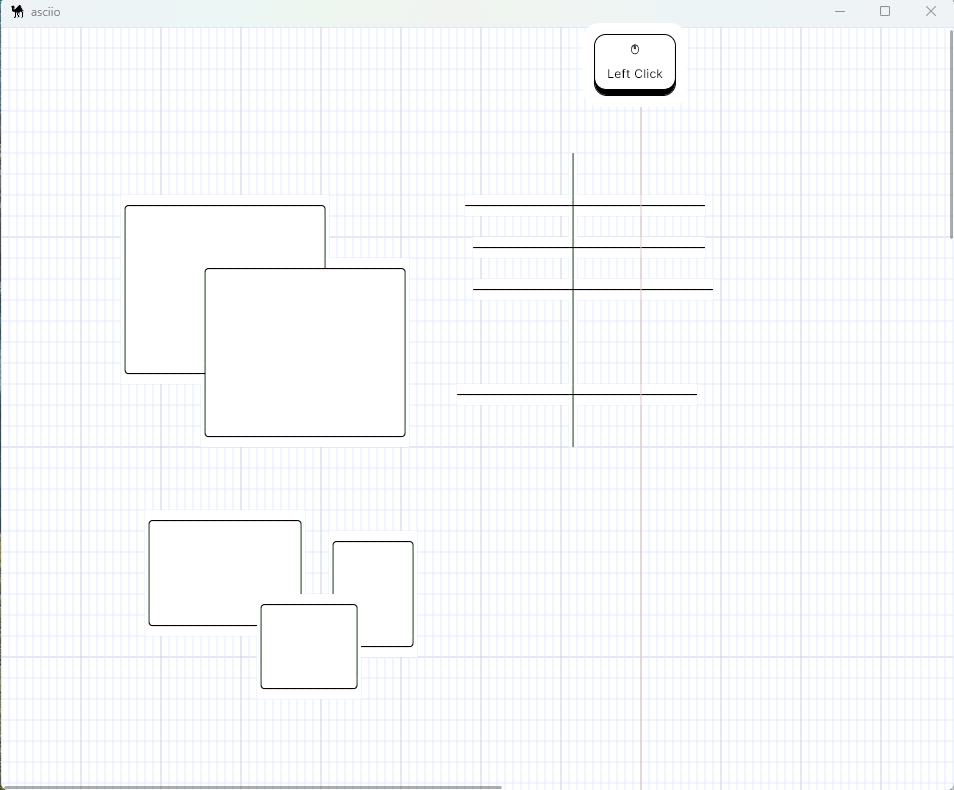

Example of non-connecting lines in crossing mode

                     ╔═════╦═════╦══════╦═════╦════╦═════╗
                     ║     ║     ║      ║     ║    ║     ║
                     ╠═════╬═════╬══════╬═════╬════╬═════╣
                     ║     ║  A  ║      ║  B  ║    ║     ║
                     ╠═════╬═════╬══════╬═════╬════╬═════╣
                     ║     ║  C  ║      ║     ║    ║     ║
                     ╠═════╬═════╬══════╬═════╬════╬═════╣
                     ║     ║     ║      ║     ║  D ║     ║
                     ╠═════╬═════╬══════╬═════╬════╬═════╣
                     ╚═════╩═════╩══════╩═════╩════╩═════╝

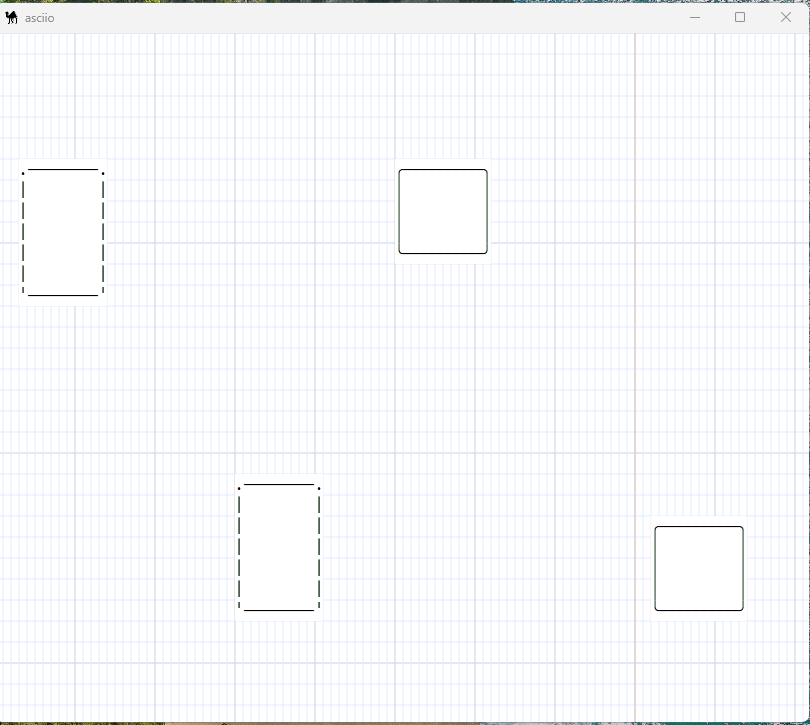

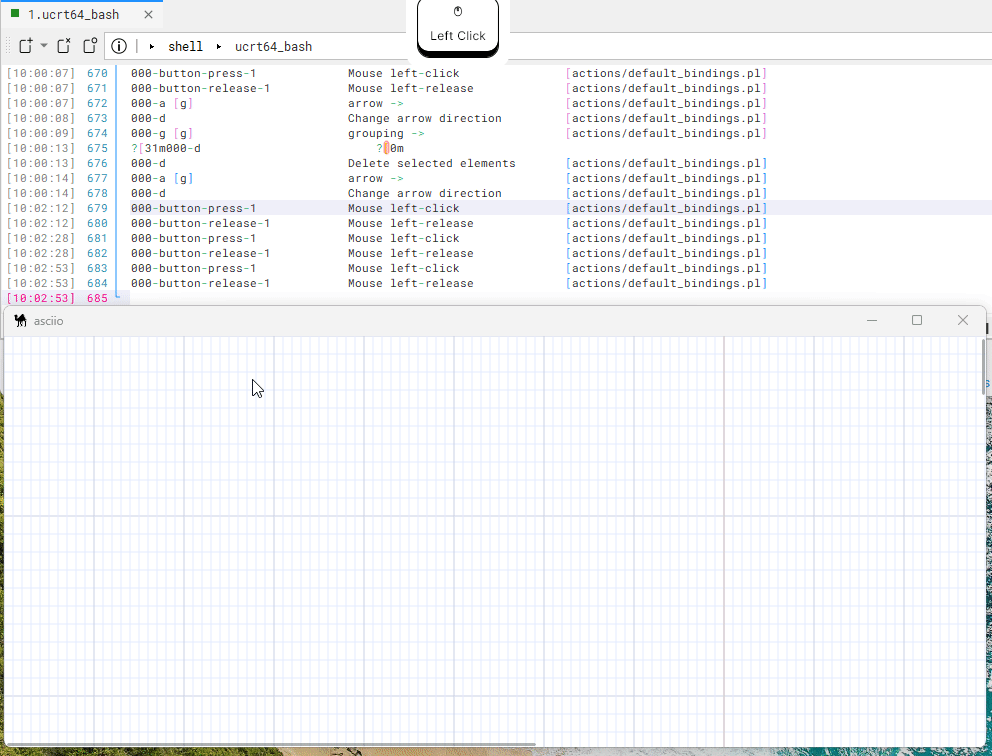

Wirl arrow dynamic configuration

The wirl arrow can be dynamically configured by using the keyboard bindings. Some configuration can be done via the popup menus but we are working eliminating them in favor of keyboard bindings.

The keyboard bindings can have changed, best is to check them in the default_bindings.pl configuration file.

You can also define your own bindings.

Changing the arrow type

binding: << e >> + << w >> + chose the arrow type

Controlling the connectors

binding: << a >> + chose the connection command

• start enable connection

• start disable connection

• end enable connection

• end disable connection

• enable diagonals

• disable diagonals

• Start flip enable connection

• End flip enable connection

changing the arrow connector

binding: << a >> + << c >> + (<< s >> or << e >>) + chose the arrow connector

• << a >> group ‘arrow’
• << c >> sub group ‘connector’
• << s >> sub group ‘start_connector’
• << e >> sub group ‘end_connector’

fixed connector shape

A single character will be used as the connector regardless of the arrow geometry

dynamic connector shape

A set of character that will be used depending on the arrow geometry

   RIGHT  DOWN  LEFT  UP   45   135   225  315
[ ['-',   '|',  '-',  '|', '/', '\\', '/', '\\'] ],

Pseudo-connectors

Pseudo-connectors are a one-glyph-text boxes, used by git mode for example, which can also be used to add connectors to user-created groups.

• create a pseudo-connector
• change its glyph if necessary
• place it

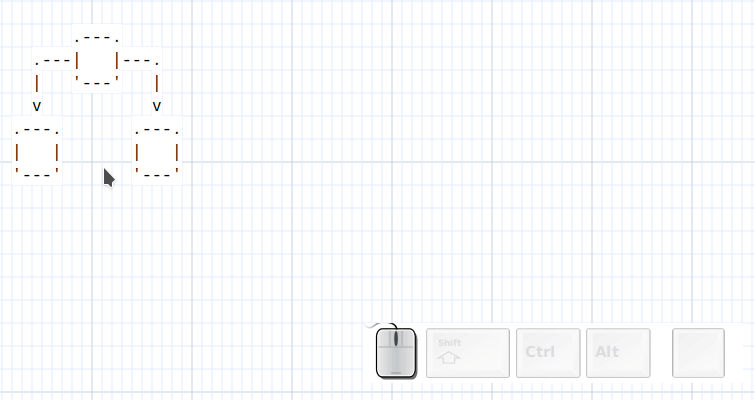

• group all your elements

pseudo-connector with 4 “optimized” connectors

pseudo-connector with one connector

Use a “center connect box”

Using the character under the current cursor to Create a “center connect box”. Visually, this connector looks like it is one piece with the underlying element.

Example

Element connectors

It is possible to add custom connectors when creating an element stencil, see setup/Asciio for the default stencils.

create_box
	(
	NAME               => 'rabbit paw',
	TEXT_ONLY          => <<'TEXT'
(\_/)
(O.o)
/>
TEXT
,
	RESIZABLE          => 0,
	WITH_FRAME         => 0,
	DEFAULT_CONNECTORS => 0,
	CONNECTORS         => [[2, -1, -1, 2, -1, -1, 'paw']]
	),

CONNECTORS

[ # An array of connector
	[
	2,      # X coordinate
	-1,     # percentage of width, -1 to disabe
	-1,     # offset added to position if perventage is used
	2,      # Y coordinate
	-1,     # same as above for Y
	-1,     # same as above for Y
	'paw'   # connector name
	],
	[
	# next connector
	...
	],
]

The class also has these functions:

• add_connector, dynamically add connector
• remove_connector, by name

Example

Interactive Connector Operations

Adding connectors

• Select a single element
• Enter element group with «e»
• Enter element add connectors sub group whie «C»
• Move the mouse to where you want to add a connector
• Press the left mouse button to add a connector
• Press «Escape» to exit group

Connectors can be added up to on character outside the element.

Removing connectors

• start with the same steps as “Add connectors” above
• Press the right mouse button to delete the connector

Some connectors can’t be delete.

• The default 4 connectors of the box element
• Connectors that are connected to another element

Asciio shapes

You can add triangles, rombus, and elipses via the popup menu or use the bindings below:

Asciio image box

The purpose of an image box is to have a background image; it’s ideal as a background when creating ASCII Art in Pen Mode.

• Image boxes have grayscale and transparency settings
• Images aren’t exported instead a text placeholders will be exported

Bindings

Prefix: All operations require pressing «I» to enter the image Box group.

Create an image box from a file

Image box operations

Image boxes, like ordinary boxes, support resizing and moving.

image box visual controls sub group

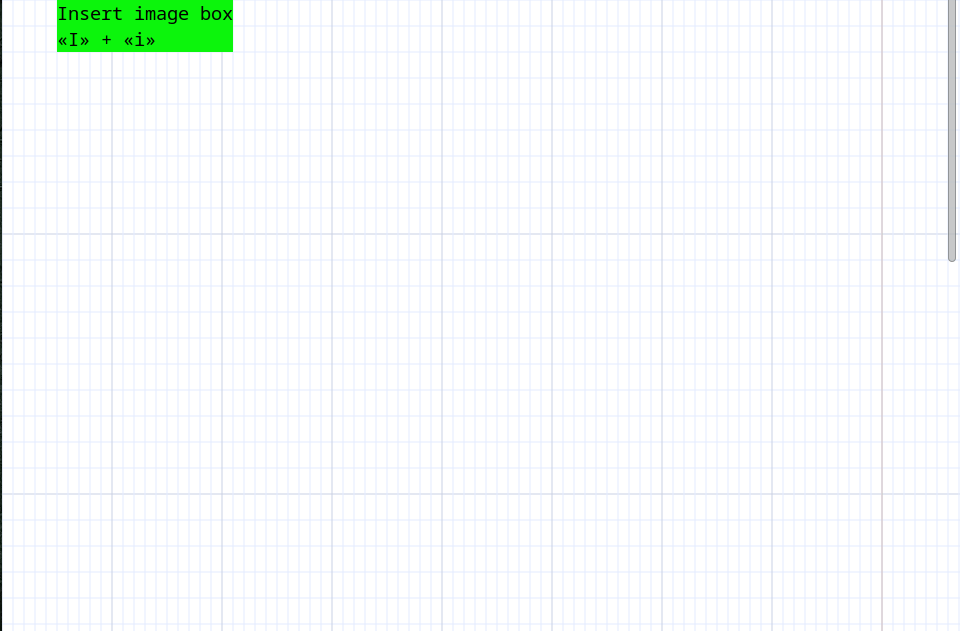

Freezing image boxes

Bindings:

Frozen image boxes

• can’t be resized
• can’t be moved
• are put in the background
  • they can’t be deleted if frozen and in the background, thaw to delete

Copy and paste the image from the clipboard

Under Linux system, we need to install the xclip tool.

Copy an image to the clipboard through one of the following commands:

• If the image is in PNG format then use the following command

xclip -selection clipboard -t image/png -i image.png

Only PNG format is supported.

Under the Windows system, we can directly use the system function to copy a picture.

Use Ctrl+v directly in the canvas to paste the image into the canvas, and it will automatically create an image box.

verbatim objects

Text elements with ASCII art or normal text. Asciio has as set of verbatim elements in its stencils which can be accessed via the popup menu, or you can add a binding if you use them often. The element’s text can be edited. You can also use any Ascii-art/Text you have in a file via an exec-box.

                   ___________
1                 //////|\\\\\\
2                '.-----------.'
3                 |    ___    |
4      (\_/) Zzz  | [] | | [] |  (\_/)
5      (-.-)      |____|_|____|  (o.o)
6      (> <)                     (> <)
7
8
9
0

scales

Simple text elements representing scales/rulers that you can use to scale or align, see hints, your elements.

1    1234567890
2
3    1___5____0____5____0____5____0____5____0____5____0
4
5
6
7
8
9
0

User stencils

You can create stencils that you are going to reuse, details of how to do it in the best way can be found in the Configuration section.

Here are three examples:

integrating Asciio and ditaa (third party example)

There was a page (Corn Empire) where a user detailed how to make an integration.

That page is not online anymore, I modified a copy for this documentation.

If you are the original author please contact me so I can give you credit.

Introduction

You found this page because you are looking for more information on installing asciio and ditaa, and then modifying asciio to better interact with ditaa. Well you came to the right place. This guide will take you step-by-step through installing both tools, and modifying asciio to output diagrams to ditaa.

Modifying asciio

Make yourself familiar with ditaa and asciio, you may see the benefit of outputting asciio text files that are compatible with ditaa without modification. Or better yet, generate your diagrams for you when you save :) . This section will explain how to do all of that and more!

Adding in a Ditaa Stencil

You will need to create a new stencils file to create boxes and arrows that are compatible with ditaa (you could optionally modify the standard files if you will only use asciio for ditaa purposes). I got the idea for the modifications from here: http://strawp.net/archive/geeking-out-with-diagrams-in-ascii/

A Standard Box

Go to the App/Asciio/setup/stencils (in the /usr/share/perl5/ or /usr/share/perl/5.10.0/) directory, and find the asciio file. Using for favourite editor, copy and paste the standard box code into a new file called ditaa. Then make the following changes to the standard box code in this new file:

To change the corners, modify line 14/33 and change . to + and modify line 17/36 and change ' to +.

Then modify lines 5 and 7 in the same way. Replace the . with + and the ' with +.

Or you could optionally just copy and paste the completed code below (the $VAR1 = [ is only needed once, and just starts off the file, the ]; at the end of the block, ends the file. All bless calls should be between these lines) :

$VAR1 = [

          bless( {
                   'HEIGHT' => 3,
                   'TEXT' => '+---+
|   |
+---+',
                   'NAME' => 'ditaabox',
                   'WIDTH' => 5,
		   'TEXT_ONLY' => '',
		   'TITLE' => '',
		   'BOX_TYPE' =>
				[
				[TRUE, 'top', '+', '-', '+', TRUE, ],
				[FALSE, 'title separator', '|', '-', '|', TRUE, ],
				[TRUE, 'body separator', '| ', '|', ' |', TRUE, ],
				[TRUE, 'bottom', '+', '-', '+', TRUE, ],
				] ,
		   'EDITABLE' => 1,
		   RESIZABLE => 1,
		   X_OFFSET => 0, Y_OFFSET => 0,
                 }, 'App::Asciio::stripes::editable_box2' ),

                ];

Add Rounded Box

But why stop there? How about we add in a nice ditaa rounded box. Add this code to the ditaa stencil file just below our modified box code:

          bless( {
                   'HEIGHT' => 3,
                   'TEXT' => '/---\\
|   |
\\---/',
                   'NAME' => 'roundedbox',
                   'WIDTH' => 5,
                   'TEXT_ONLY' => '',
                   'TITLE' => '',
                   'BOX_TYPE' =>
                                [
                                [TRUE, 'top', '/', '-', '\\', TRUE, ],
                                [FALSE, 'title separator', '|', '-', '|', TRUE, ],
                                [TRUE, 'body separator', '| ', '|', ' |', TRUE, ],
                                [TRUE, 'bottom', '\\', '-', '/', TRUE, ],
                                ] ,
                   'EDITABLE' => 1,
                   RESIZABLE => 1,
                   X_OFFSET => 0, Y_OFFSET => 0,
                 }, 'App::Asciio::stripes::editable_box2' ),

Add ditaa Arrows

The asciio arrows don’t jive well with ditaa. You can add this in the ditaa stencil file, it is based on the whirl arrow:

bless({
        'NAME' => 'ditaa_arrow',
        'HEIGHT' => 6,
        'WIDTH' => 17,
        'POINTS' => [[16,5]],
        'SELECTED' => 0,
        'EDITABLE' => 1,
        'ALLOW_DIAGONAL_LINES' => 0,
        'POINTS_OFFSETS' => [[0,0]],
        'DIRECTION' => 'down-right' ,
        'ARROW_TYPE' =>
                [
                ['origin', '', '*', '', '', '', TRUE],
                ['up', '|', '|', '', '', '^', TRUE],
                ['down', '|', '|', '', '', 'v', TRUE],
                ['left', '-', '-', '', '', '<', TRUE],
                ['upleft', '|', '|', '\\', '-', '<', TRUE],
                ['leftup', '-', '-', '\\', '|', '^', TRUE],
                ['downleft', '|', '|', '/', '-', '<', TRUE],
                ['leftdown', '-', '-', '/', '|', 'v', TRUE],
                ['right', '-', '-','', '', '>', TRUE],
                ['upright', '|', '|', '/', '-', '>', TRUE],
                ['rightup', '-', '-', '/', '|', '^', TRUE],
                ['downright', '|', '|', '\\', '-', '>', TRUE],
                ['rightdown', '-', '-', '\\', '|', 'v', TRUE],
                ['45', '/', '/', '', '', '^', TRUE, ],
                ['135', '\\', '\\', '', '', 'v', TRUE, ],
                ['225', '/', '/', '', '', 'v', TRUE, ],
                ['315', '\\', '\\', '', '', '^', TRUE, ],
                ],

        'ARROWS' =>
                [
                bless(
                        {
                        'HEIGHT' => 6,
                        'STRIPES' =>
                                [
                                {'TEXT' => '|
|
|
|
|
\'',

                                'HEIGHT' => 6,
                                'Y_OFFSET' => 0,
                                'WIDTH' => 1,
                                'X_OFFSET' => 0}
                                ,
                                {
                                'TEXT' => '--------------->',
                                'HEIGHT' => 1,
                                'Y_OFFSET' => 5,
                                'WIDTH' => 16,
                                'X_OFFSET' => 1
                                }
                                ],
                        'WIDTH' => 17,
                        'END_X' => 16,
                        'ARROW_TYPE' =>
                                [
                                #name: $start, $body, $connection, $body_2, $end

                                ['origin', '', '*', '', '', '', TRUE],
                                ['up', '|', '|', '', '', '^', TRUE],
                                ['down', '|', '|', '', '', 'v', TRUE],
                                ['left', '-', '-', '', '', '<', TRUE],
                                ['upleft', '|', '|', '\\', '-', '<', TRUE],
                                ['leftup', '-', '-', '\\', '|', '^', TRUE],
                                ['downleft', '|', '|', '/', '-', '<', TRUE],
                                ['leftdown', '-', '-', '/', '|', 'v', TRUE],
                                ['right', '-', '-','', '', '>', TRUE],
                                ['upright', '|', '|', '/', '-', '>', TRUE],
                                ['rightup', '-', '-', '/', '|', '^', TRUE],
                                ['downright', '|', '|', '\\', '-', '>', TRUE],
                                ['rightdown', '-', '-', '\\', '|', 'v', TRUE],
                                ['45', '/', '/', '', '', '^', TRUE, ],
                                ['135', '\\', '\\', '', '', 'v', TRUE, ],
                                ['225', '/', '/', '', '', 'v', TRUE, ],
                                ['315', '\\', '\\', '', '', '^', TRUE, ],
                                ],
                        'END_Y' => 5,
                        'DIRECTION' => 'down-right'
                        }, 'App::Asciio::stripes::wirl_arrow' ),

                ],
        }, 'App::Asciio::stripes::section_wirl_arrow' ) ,

Add Colours and Special Shape Codes

All of the above will give you the core functionality of ditaa into asciio. But what about some basic colour tags, and shape codes. I’ve created a special stencil file for those. You can copy this below, and place it in a file called ditaatags next to the asciio stencil file.

my @ascii =
        (
        'shapes/document' => <<'EOA',
{d}
EOA
        'shapes/storage' => <<'EOA',
{s}
EOA
	'shapes/input_output' => <<'EOA',
{io}
EOA
        'shapes/tr' => <<'EOA',
{tr}
EOA
        'shapes/o' => <<'EOA',
{o}
EOA
        'shapes/mo' => <<'EOA',
{mo}
EOA
        'shapes/c' => <<'EOA',
{c}
EOA
        'colours/Red' => <<'EOA',
cRED
EOA
        'colours/Blue' => <<'EOA',
cBLU
EOA
        'colours/Pink' => <<'EOA',
cPNK
EOA
        'colours/Black' => <<'EOA',
cBLK
EOA
        'colours/Green' => <<'EOA',
cGRE
EOA
        'colours/Yellow' => <<'EOA',
cYEL
EOA

        ) ;

my @boxes ;

use App::Asciio::stripes::editable_box2 ;

for(my $ascii_index = 0 ; $ascii_index < $#ascii ; $ascii_index+= 2)
        {
        my $box = new App::Asciio::stripes::editable_box2
                                ({
                                TEXT_ONLY => $ascii[$ascii_index + 1],
                                EDITABLE => 1,
                                RESIZABLE => 1,
                                }) ;

        $box->set_box_type([map{$_->[0] = 0; $_} @{$box->get_box_type()}]) ;
        $box->shrink() ;
        $box->{'NAME'} = $ascii[$ascii_index] ;
        push @boxes, $box ;
        }

[@boxes] ;

Once these have been added, you need to modify the setup.ini file to point to the new stencils. To do that, run the following commands:

cd .. sudo vim setup.ini Where it says ‘stencils/divers’, add on the next line, ‘stencils/ditaa’, and then ‘stencils/ditaatags’,. Your new file should look like this:

{
STENCILS =>
        [
        'stencils/asciio',
        'stencils/computer',
        'stencils/people',
        'stencils/divers',
        'stencils/ditaa',
        'stencils/ditaatags',
        ],

ACTION_FILES =>
        [
        'actions/align.pl',
        'actions/clipboard.pl',
        'actions/debug.pl',
        'actions/new_elements.pl',
        'actions/elements_manipulation.pl',
        'actions/file.pl',
        'actions/mouse.pl',
        'actions/colors.pl',
        'actions/unsorted.pl',
        'actions/animation.pl',

        'actions/context_menu_multi_wirl.pl',
        'actions/context_menu_box.pl',
        'actions/context_menu_rulers.pl',
        ],

HOOK_FILES =>
        [
        'hooks/canonize_connections.pl',
        ],

ASCIIO_OBJECT_SETUP =>
        [
        'asciio_object/basic.pl',
        ],

IMPORT_EXPORT =>
        [
        'import_export/ascii.pl',
        'import_export/perl.pl',
        'import_export/png.pl',
        ],
}

Modifying Saving

It is nice to generate a text file of the data in case you need to make further tweaks before running it through ditaa. It is also required if you want to generate .pngs on the fly of your diagrams.

Go to App/Asciio/setup/actions and load up the file.pl file.

On line 65, replace the original saving code with the following:

		#$new_title = $self->save_with_type($elements_to_save, $type, $file_name) ;
		## Regardless of previous stuff, save one asciio file and one asciio.<ext>.txt ascii file
		## Courtesy of Strawp of http://strawp.net/archive/geeking-out-with-diagrams-in-ascii/
		$new_title = $self->save_with_type($elements_to_save, "asciio", $file_name) ;
		$new_title = $self->save_with_type($elements_to_save, "txt", $file_name.".txt") ;

		## Run ditaa to convert text version into nice copy
		## Use this if you have Proc::Background available.  Otherwise, use the system call below.
		#use Proc::Background;
		#my $proc1 = Proc::Background->new("c:\\bin\\ditaa.bat \"".$file_name.".txt\" \"".$file_name.".png\"");
		#my $proc1 = Proc::Background->new("java -jar /home/thomas/programs/ditaa/ditaa0_9.jar \"".$file_name.".txt\" \"".$file_name.".png\"");
		## This call converts while saving.  Slows down save time.  Replace the path below with your path to ditaa.jar
                ## You can add any special parameters here that you commonly use as well.
                ## Use this command if you unzipped the .jar file
		system("java -jar /home/thomas/programs/asciio-ditaa/ditaa0_9.jar \"".$file_name.".txt\" \"".$file_name.".png\"");
		## Use this command if you installed the .deb.
		#system("ditaa \"".$file_name.".txt\" \"".$file_name.".png\"");

Using the New Setup

Now that you have made all of your tweaks, you are ready to start using your asciio/ditaa combo! Start by making a simple diagram. Here is one below:

Notice when you save this file for the first time:

Several files are created at first. As well as our rendered image.

Now, lets spice it up with some colour and some shapes. Use the right click menu to add the document tag to each of the items labelled document. To do this you will need to:

Right click and select stencils → ditaatags → shapes → document Drag the {d} over the first document. I suggest you group any shapes, and shape modifiers by using CTRL+G once you set them up. If you do this, all of your pieces will move around if you have to tweak your image. Grouping involves selecting each item (hold shift while clicking each item), then press CTRL+G on your keyboard. This will cause this group of items to change background colour, and if you move one item, they will all move together. (You can ungroup by pressing CTRL+U) Add another {d} to the other document. If your item is falling behind the item you want, you can press CTRL+F to bring it to the foreground. Or CTRL+B to push the item on top into the background. Now lets add some colour. Right click, and add some colour tags to the documents. As you save, you will notice the .png updates automatically.

Here is your final work of art:

Troubleshooting

asciio Won’t Load File I’ve noticed that if you modify the stock asciio shapes (either through the gui itself, or in the stencils file) often times if you launch asciio, and then try to load a file with altered shapes, it will fail to load. It generates this output in the terminal:

thomas@thomas-desktop:~/programs/asciio-ditaa$ asciio Using setup directory:‘/usr/share/perl5/App/Asciio/setup/’ running action ‘Open’. load_file: can’t load file ‘/home/thomas/programs/asciio-ditaa/saves/test’: Unrecognized character \x8E in column 23827 at (eval 105) line 372. You can still get asciio to open, you just need to launch it with the file you want to load. So either launch it by typing something like:

thomas@thomas-desktop:~/programs/asciio-ditaa$ asciio /home/thomas/programs/asciio-ditaa/saves/test Using setup directory:‘/usr/share/perl5/App/Asciio/setup/’ running action ‘Open’. Or launch from your file manager. In my case, Nautilus:

asciio Forgets Where I Saved

When loading asciio for the first time, and saving, I find that asciio forgets where I saved the document. It always returns to the original launching location.

To avoid this, I’d recommend that after your first save, you reopen asciio by using one of the two procedures mentioned above. This will allow it to remember where you are working, and the Save function will work correctly.

Editing elements text and attributes

Asciio has two editing mode, Dialog and Inline, the default mode is Dialog.

Dialog editing

Binding: Return, double-click

Asciio opens a dialog which lets you set:

• boxing options
• title
• text

Inline editing

Binding: Return, double-click

In this mode you can only edit the text.

Alternate editing

You can edit in the other mode with these bindings:

• ctl + Return
• ctl + double-click

Changing mode

To change the mode during the session use:

Binding: «zi»

Setting the editing mode in the user configuration

EDIT_TEXT_INLINE => 0,

• EDIT_TEXT_INLINE => 0 Indicates that the default editing mode is Dialog editing
• EDIT_TEXT_INLINE => 1 Indicates that the default editing mode is Inline editing

Markup mode

We can use color in asciio, But if exported, the color information will be lost. The markup mode adds marks in the chart, and these marks can be retained when exporting, so that special effects can be displayed in some specific software.

Use markup mode

To use marks in the chart, turn on this option in the configuration.The markup enable variable is the basic attribute of the chart and cannot be changed at runtime.

USE_MARKUP_MODE => 'zimwiki',

If you do not need to use any markup mode, please keep this variable empty.

USE_MARKUP_MODE => '',

Currently, only zimwiki format markup is supported, then markdown format or pure html format may be supported in the future.

zimwiki format description

Edit marks

zimwiki markup mode currently supports text editing of box type elements.Just place the text in the middle of the marks.

Currently supports 5 types of markers:

• bold
  • <b>something</b>
• underline
  • <u>something</u>
• double underline
  • <span link="https://github.com/nkh/P5-App-Asciio">link name</span>
• strikethrough
  • <s>something</s>
• italics
  • <i>something</i>

This is what it looks like in Asciio:

This is the effect in inline editing mode:

Marks can only be valid for a single line, not multi lines.

Marks support nesting:

Although this function is supported, it is not recommended to use it in this way, and it does not make much sense

Export

Normally, when exporting to ascii, you will get the following text

Binding: «ctl-e» «shift-Y» «Y»

                          .----------.  .---------------.  .-----------. .---------------.
                          | italics  |  | strikethrough |  | underline | | asciio github |
                          '----------'  '---------------'  '-----------' '---------------'

Currently, an export format is also supported, and the mark up character is added, which can be recognized by zim.

Binding: «ctl-shift-E»

                          .----------.  .---------------.  .-----------.
                          | //italics//  |  | ~~strikethrough~~ |  | __underline__ |
                          '----------'  '---------------'  '-----------'

In the zim environment, they will be rendered like this:

Spellchecking Elements

Bindings

Asciio can optionally spellcheck for erroneous words in your elements and mark them.

Asciio will display the errors in the terminal.

You need to have module Text::SpellChecker installed, that module requires that you have Aspell dev installed as well as a compiler, making spellchecking an option.

Working efficiently

You can do a lot of thing with just the mouse and the popup menus but that would be a mistake, keyboard bindings are much faster and more efficient, including moving elements around.

The mouse shines when quick-linking elements, they allow you to create a base diagram fast but editing and fine tuning goes faster with the keyboard or keyboard + mouse.

Learn the keyboard bindings, they are a very good way to use Asciio.

Keyboard

Asciio has many bindings which let you work effectively, a list of all the bindings can be found in the Bindings section.

Mouse

Quick link

Binding: «alt-left-mouse-click»

• create a box is nothing is selected
• if only a box is selected, create a new box and connect to it
• if a box is selected and mouse over a box, connect them
• if multiple boxes are selected, create a box and connect to all boxes

Quick links will use the current attributes, see: Changing element attributes.

Orthogonal quick link

Binding: «shift-alt-left-mouse-click»

Works like a quick link but, when necessary, will create a box that is either aligned horizontally or vertically with the first element of the selection (whichever is closest)

Orthogonal quick links will use the current attributes, see: Changing element attributes.

Quick copy

Binding: «alt-shift-left-mouse-click»

Copy the current selection and move it to another position, see cloning

Quick arrow

Binding: «ctl-alt-mouse-motion»

If an arrow is selected, move its end point with the mouse.

Quick section

Binding: «ctl-alt-left-mouse-click»

• If a wirl arrow is selected, add section.
• if another element is selected, add new arrow

You can then move the its end point with the mouse. releasing «ctl» lets you move the mouse to another position for a new section.

Quick box and section

You can quickly create boxes and section by combining quick link and quick section.

• «alt-left-mouse-click», create a box
• «ctl-alt-left-mouse-click», link the box to a new arrow
• move mouse
• «ctl-alt-left-mouse-click», add a section
• move mouse
• «ctl-alt-left-mouse-click», add a section
• move mouse
• «alt-left-mouse-click», connect last section to new box

Mouse dragging canvas

If no element is selected, you can use the mouse to drag the canvas.

If at least one element is selected, other operations are performed. See drag_drop.

Binding: control + left click + drag

Cloning

You can activate the cloning feature to quickly add elements.

Binding: c

Cloning Base Elements

When you initiate cloning without any elements selected, Asciio allows you to clone one of the base elements.

Cloning the Selection

You can also clone a set of elements that have been selected. The bindings for the base elements are still applicable.

Hint Lines

If hint lines are enabled, additional lines are displayed to indicate the limits of the elements being cloned. You can toggle the hint lines on and off.

Binding: h

Stencils and “Drag And Drop”

Stencils

You can access Stencils via “Drag and Drop”.

Asciio has bindings to open stencils in a separate instance

Start Binding: is

Then uses one of the following keys:

user stencils

User stencils are plain Asciio files.

The distribution contains a few asciio stencils in “setup/Stencils/*.asciio”, copy the ones you want to your $HOME/.config/Asciio/stencils.

You can create a new stencil directly from the file picker, just type the name of the new stencil and open it.

Drag and Drop

Binding: control + left click + drag

Changing element attributes

Element attributes control how elements are rendered.

Example attributes:

• character to use to draw a box
• ASCII or Unicode characters
• filled shapes or not
• …

Using the context menu in the GUI

Only one element attributes can be changed.

Using the keyboard bindings

Multiple elements can be selected and modified.

Binding:

• «e» enters the element operation group
• «?» sub group for the element you want to change

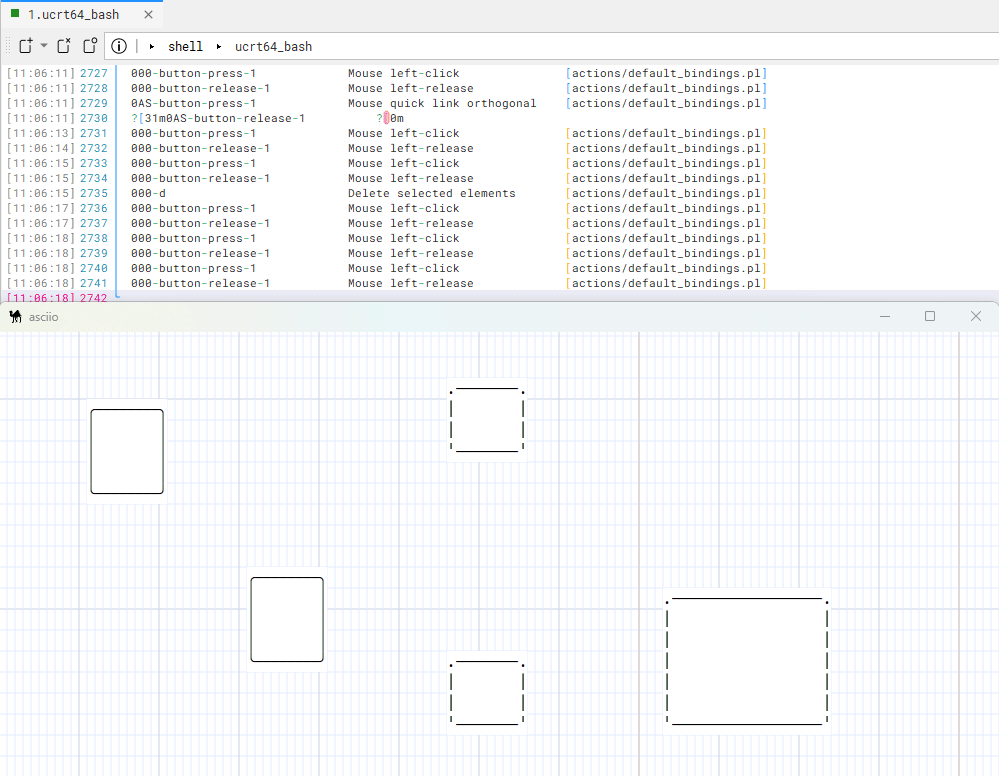

Copy-Paste attributes to other elements

Also under the element operation group, there are two operations:

Copy the attributes from an element

Select one element then :

Binding:

• «e» enters the element operation group
• «c» copy the attributes

Paste the attributes

Select one or more element then :

Binding:

• «e» enters the element operation group
• «p» paste the attributes

Paste the control attributes

Select one or more element then :

Binding:

- «e»       enters the element operation group
- «Shift+P» paste the control attributes

The control attributes of the element are as follows:

• AUTOCONNECT_DISABLED
• OPTIMIZE_DISABLED
• CROSSOVER_DISABLED
• NOT_CONNECTABLE_START
• NOT_CONNECTABLE_END
• ALLOW_BORDER_CONNECTION
• AUTO_SHRINK
• RESIZABLE
• EDITABLE

interactive wirl arrow

The following bindings make it easy to interactively work with a wirl arrow:

Binding:

• «Ctrl+Alt+mouse-1» Wirl arrow add section
• «Ctrl+Alt+d» Wirl arrow insert flex point
• «Ctrl+Alt+motion» Arrow to mouse

They will used the currently copied appearance and control properties.

Mouse Quick link and Orthogonal quick link

See: mouse

Quick links and Orthogonal links use the current appearance properties.

Export/Save

Asciio format

The default format asciio uses when not saved in one of the other supported formats.

This is the format that allows you to reload your diagram as objects and continue editing it.

Asciio embedded in a PNG file

You can save your asciio document as a PNG, it will be recognized by image viewers; that also allows you to have a preview in your file manager.

You need to give the .pnge extension to the file you save (please note the final ‘e’), this lets asciio know what you want to do. Your file will have the .png extension.

When opening a PNG file, asciio looks for its data and opens the file if it’s present.

PNG

Asciio export directly to PNG.

Save your file with a .png extension.

it will save the current display from 0,0 to the extent of the elements in the diagram plus one row and one line.

Exporting to ASCII

You can export to a file in ASCII by using a ‘.txt’ file extension.

You can also export the selection, in ASCII, to the Primary clipboard.

SVG

Export directly to SVG

Save your document with a .svg extension to create an SVG file.

Asciio will generate an SVG image that looks like the display in the GUI, you may want to disable the grid display if you are going to use them in presentations («zg»).

Link to the above SVG file

Converting diagrams to SVG images.

Use Goat or svgbob to convert your diagrams

Create a diagram in Asciio and save it as text

Transform it to SVG from ASCII

Further process the SVG

I used fskpf web site to generate a pseudo hand-drawn graph out of it

The svg2roughj sproject is here svg2roughjs

JSON

asciio has an experimental JSON exporter and no JSON importer.

I’m not using it as I script directly with the Scripting API.

If you need a full JSON exporter/importer, open a ticket and explain why (I’ll try to convince you that you don’t need it :) )

Clipboard

Some clipboard commands are using the xsel command.

Win11 Msys2

For users of Win11 Msys2 system. To make using the clipboard function smoother, it is best to install the Win32::Clipboard module. If this module is not installed, then using PowerShell to perform clipboard operations is very inefficient. Users of other systems do not have this requirement!

cpanm Win32::Clipboard --force

Modes

Selection

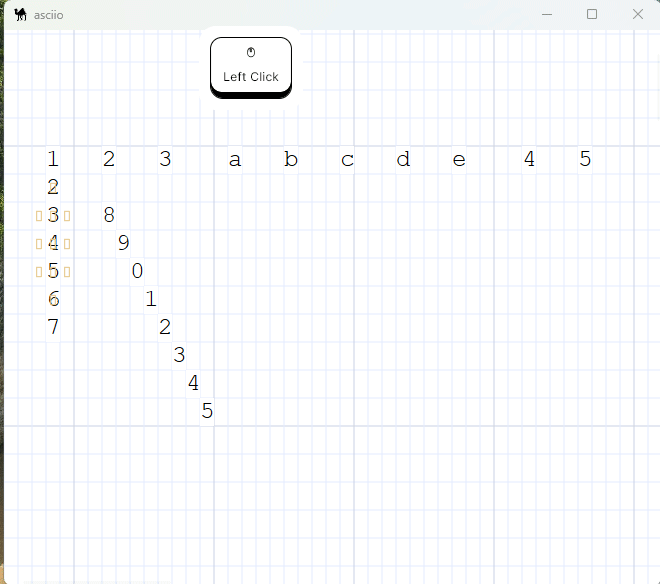

Select elements by:

• clicking on them
  • «left-click» - select the element
  • «Shift» + «left-click» - add the element to the current selection
• using the rectangular selection boxes - «left-click» + «drag»

There are more options for selecting elements:

• graph selection group
• mouse-drawn polygon selection
• mouse-move selection (with the left mouse button held down)

Graph selection group

Prefix: All operations require pressing «S» to enter the graph selection mode

.---------------------------------------------------------.
|                   all connected nodes                   |
|---------------------------------------------------------|
|             .----------.       .-----------.            |
|             | ancestor |---.---| reachable |            |
|             '----------'   |   '-----------'            |
|                            |                            |
|                            |                            |
|                            v                            |
|                .----------------------.                 |
|        .-------| predecessor-neighbor |                 |
|        |       '----------------------'                 |
|        |                  |                             |
|        v                  v                             |
| .-----------.          .------.                         |
| |    not    |  .-------| node |--------.                |
| | reachable |  |       '------'        |                |
| '-----------'  |                       |                |
|                v                       v                |
|     .--------------------.  .--------------------.      |
|     | successor-neighbor |  | successor-neighbor |      |
|     '--------------------'  '--------------------'      |
|                |                       |                |
|                v                       v                |
|         .------------.          .-----------.           |
|         | descendant |          | reachable |           |
|         '------------'          '-----------'           |
'---------------------------------------------------------'

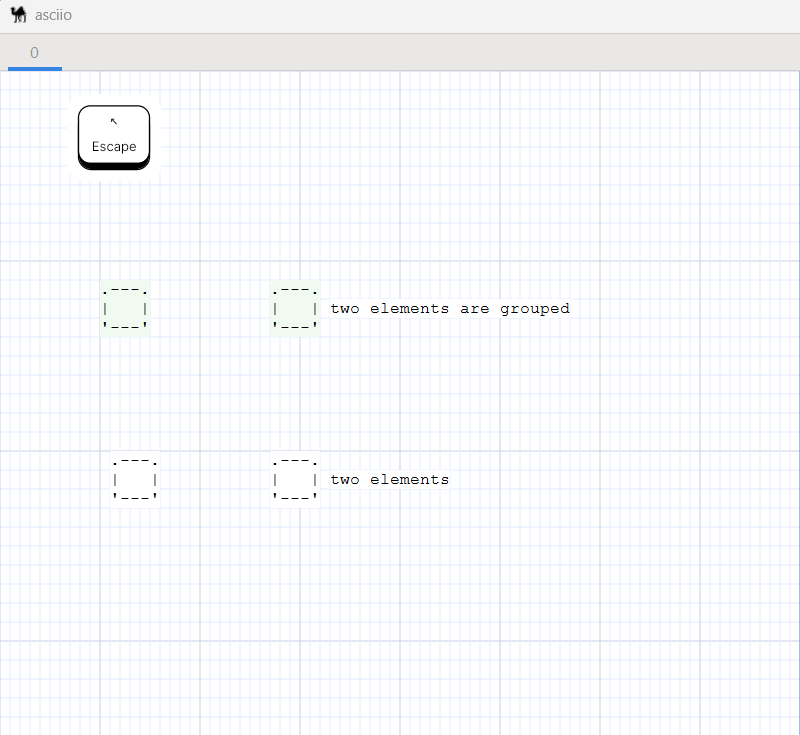

Polygon and Mouse-move selection mode

Entering and exiting selection mode

Prefix: All operations require pressing «s» to enter the selection mode

Polygon selection operation group operation collection:

Operation after entering selection mode

Common selection operation example:

Operation after entering polygon selection mode

1. selection situation.
2. deselection situation.

Pen

The pen mode is used to draw one character (dot) at a time onto the canvas.

It can be used create ASCII art or stencils.

Operations

Entering and exiting pen mode

The mouse pointer changes to ‘?’, the default character.

If elements are selected prior to entering pen mode, those characters will be used, in a loop, as default characters

Drawing characters

• press the left mouse button or press the Enter key
• hold down the left mouse button and drag to continuously draw characters

Changing the drawing character

• press a key on the keyboard
  • inserted the character
  • becomes the default character
• right click on a character

Editing

• BackSpace deletes characters
• Shift + Enter wraps lines.

Efficient input using the keyboard

When drawing ASCII art with many small elements, using the keyboard is more efficient.

Automatic cursor movement

When using the keyboard, the cursor can be moved automatically after you insert a character.

Eraser

Exiting the eraser sub-operation group will return to the pen operation group.

In the eraser sub-operation group, left-clicking the mouse deletes elements.

Eraser mode

There are 3 ways to delete elements in pen mode:

• In character drawing mode
  • place the cursor on the dot element (pen element), and then press the <<Backspace>> key.
• In the eraser mode
  • Click the left mouse button directly on elements
  • Click the left mouse button and drag

Merging and Splitting ‘dots’

Merging ‘dots’ into a text box

Splitting elements into ‘dots’

This will delete the original elements.

Example: Add a nose to a kitten

User defined character sets

The character sets allow you to type in any character not only those on the keyboard.

Characters sets are defined in gui.pl`.

Character set bindings:

After switching to a user defined character set, a layout panel will show the mapping,

Example of user defined set:

'~' => '─' , '!' => '▀' , '@' => '▁' , '#' => '▂'  , '$' => '▃' , '%' => '▄' ,
'^' => '▅' , '&' => '▆' , '*' => '▇' , '(' => '█'  , ')' => '▉' , '_' => '▊' ,
'+' => '▋' , '`' => '▋' , '1' => '▌' , '2' => '▍'  , '3' => '▎' , '4' => '▏' ,
'5' => '▐' , '6' => '░' , '7' => '▒' , '8' => '▓'  , '9' => '▔' , '0' => 'À' ,
'-' => '│' , '=' => '┌' , 'Q' => '┐' , 'W' => '└'  , 'E' => '┘' , 'R' => '├' ,
'T' => '┤' , 'Y' => '┬' , 'U' => '┴' , 'I' => 'Ì'  , 'O' => 'Ð' , 'P' => '┼' ,
'{' => 'Ã' , '}' => 'Ä' , '|' => 'Â' , 'q' => 'Á'  , 'w' => 'Å' , 'e' => 'Æ' ,
'r' => 'Ç' , 't' => 'Ò' , 'y' => 'Ó' , 'u' => 'Ô'  , 'i' => 'Õ' , 'o' => 'à' ,
'p' => 'á' , '[' => 'â' , ']' => 'ã' , '\\' => 'ì' , 'A' => 'ø' , 'S' => 'ù' ,
'D' => 'ú' , 'F' => 'û' , 'G' => '¢' , 'H' => '£'  , 'J' => '¥' , 'K' => '€' ,
'L' => '₩' , ':' => '±' , '"' => '×' , 'a' => '÷'  , 's' => 'Þ' , 'd' => '√' ,
'f' => '§' , 'g' => '¶' , 'h' => '©' , 'j' => '®'  , 'k' => '™' , 'l' => '‡' ,
';' => '†' , "'" => '‾' , 'Z' => '¯' , 'X' => '˚'  , 'C' => '˙' , 'V' => '˝' ,
'B' => 'ˇ' , 'N' => 'µ' , 'M' => '∂' , '<' => '≈'  , '>' => '≠' , '?' => '≤' ,
'z' => '≥' , 'x' => '≡' , 'c' => '─' , 'v' => '│'  , 'b' => '┌' , 'n' => '┐' ,
'm' => '└' , ',' => '┘' , '.' => '├' , '/' => '┤' ,

The layout of the prompt keyboard can also be customized. Currently, two keyboard layouts are supported.

PEN_KEYBOARD_LAYOUT_NAME => 'US_QWERTY', # US_QWERTY or SWE_QWERTY

ASCII Art and Stencil examples

Stencil examples:

Find

Asciio lets you search for text using regular expressions and navigate the matching elements list.

The find functionality is accessed with direct bindings or via a find mode which offers some extra functionality.

Matching elements will be have a color tag added, green for the matching elements and blueish for the current matching element.

• Direct operations

  • search for text
  • navigate matches
  • clear the search

• Find Mode operation

  • select matching elements
  • zoom the canvas.

Bindings: «Find and Find modes»

Demo

Display Option

You can set DISPLAY_MATCHING_STRIPE in your configuration to display where the match is in an element (best effort).

git

                     .*-----*------------------------------*
                    /                                       \
                   /                                         \
           *------*---------*-----BETA---.                    \
                   \                      \                    \
                    \    .-----.           '                    \
 .-------------.     *---| fix |---*-----RELEASE 1.3------>*-----*---------*
 | Release 2.0 |         '-----'    \                     /               /
 |-------------|                     \                   /               /
 | changes     |------------------->  '---*-------*--------------*------*
 | tag: ...    |                           \           /
 | eta: ...    |                            \         /
 '-------------'                             *-------'

The git mode allows you to draw git graph quickly.

The git mode redefines some bindings to allow you to work faster. Only the bindings listed below are available when editing.

When you insert and link a node:

• if nothing is under the pointer or selected, it will insert a commit node
• if a node is selected and nothing under the pointer, it will insert a new node and connect with the previously selected node
• if a node is selected and the pointer is over a node, it will link the nodes

Let’s create a git graph.

You can export the text and use it in our documentation

                 .----------------------------------.
                 |          feature branch          |
                 |                                  |
                 |       *-------------------*      |
                 |      /                     \     |
                 |     /                       \    |
                 '----/-------------------------\---'
                     /                           \
          *---------*---------*---------*---------*---------*
                    ^                             ^
                    |                             |
                    |                             |
                    |                             |
             we need a new              we want to merge here
             feature branch

or you can generate some fancy SVGs for a presentation.

The connector and arrow type of the git mode can be changed.

In the user configuration for the connector,

GIT_MODE_CONNECTOR_CHAR_LIST => ['*', 'o', '+', 'x', 'X', '┼', '╋', '╬'],

or in the popup menu for both.

Cross Mode

Introduction

Previously, crossover was a separate mode. But not anymore, crossover is just an attribute of the element. By default, the following shortcut keys are used to switch the cross attribute of the element. By default, the element has no cross attribute. The intersection of the boundaries of elements with the cross attribute will present special visual effects.

Binding:

- «e»     enters the element operation group

Complex graphics

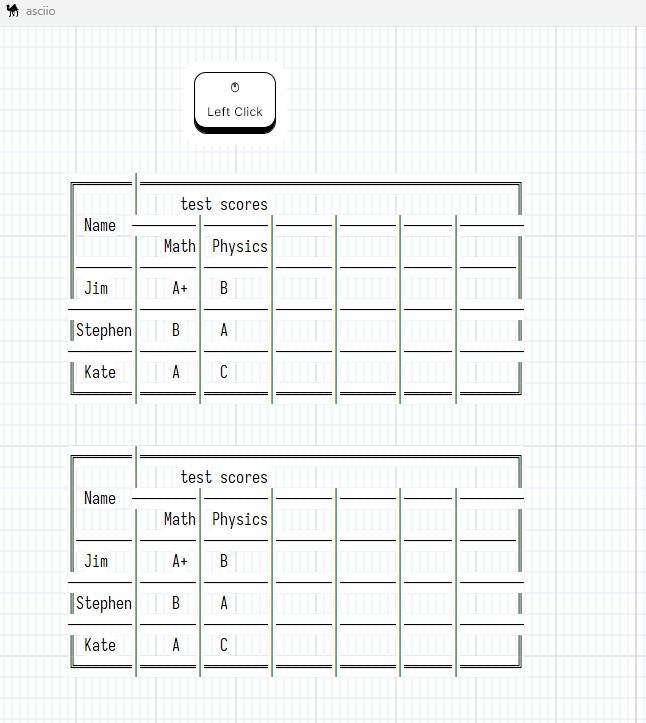

The element cross attribute allows you to draw complex tables like the following:

           ╔═══════╤═══════════════════════════════════════════════╗
           ║       │     test scores                               ║
           ║ Name  ├───────┬────────┬───────┬───────┬──────┬───────╢
           ║       │   Math│ Physics│       │       │      │       ║
           ╟───────┼───────┼────────┼───────┼───────┼──────┼───────╢
           ║ Jim   │    A+ │  B     │       │       │      │       ║
           ╟───────┼───────┼────────┼───────┼───────┼──────┼───────╢
           ║Stephen│    B  │  A     │       │       │      │       ║
           ╟───────┼───────┼────────┼───────┼───────┼──────┼───────╢
           ║ Kate  │    A  │  C     │       │       │      │       ║
           ╚═══════╧═══════╧════════╧═══════╧═══════╧══════╧═══════╝

Stripe group situation

When we merge elements into a strip group, if the merged elements themself has a cross attribute, the merged strip group will also presents the visual effect of intersection, but the strip group element itself has no cross attribute.

Exported to text

        .--------.      ╭────────╮    ┏━━━━━━━━┓    ╔════════╗
        |        |      │        │    ┃        ┃    ║        ║
        |        |      │        │    ┃  ┏━━━━━┻━━┓ ║        ║
        |        |      │        │    ┃  ┃        ┃ ║        ║
        '--------'      ╰────────╯    ┗━━┫        ┃ ╚════════╝
                                         ┃        ┃
                                         ┗━━━━━━━━┛

                |               │            ┃           ║
                |               │            ┃           ║
                |               │            ┃           ║
                |               │       ━━━━━╋━━━━━━     ║
                |               │            ┃           ║
                |               │            ┃           ║
                |               │            ┃           ║
                |               │            ┃           ║
                |               │            ┃           ║





                .--------.
                |        |          ╭─┬────────┬─────╮
                |  .-----'--.       │ │        │     │
                |  |        |       │ │        │     │
                '--.        |       │ │        │     │    ╔══════════════╗
                   |        |       │ ╰────────╯     │    ║              ║
                   '--------'       │                │    ║              ║
                                    │                │    ║              ║
                                    │        ╔═══════╧╗   ║              ║
                                    │        ║        ║   ║              ║
                                    ╰────────╢        ║   ║              ║
                                             ║        ║   ║              ║
                                             ╚════════╝   ╚══════════════╝

Slides and Slideshows

Introduction

A slide is a normal document marked with the slide attribute; the slide attribute is saved with the document.

A slideshow exists when at least one document is marked as slide.

Slides are ordered by tab position; reorder tabs to change slideshow order.

Turning a Document into a Slide

To turn a document into a slide:

• enable the slide attribute for the document
• the tab color changes to indicate slide status

Slideshow Modes

Manual Slideshow

The manual mode is intended for previewing does not create snapshots.

• the slides will be show one after another in a continuous loop
• you can pause and take over navigation
• navigate between slides
• change the delay between slides

Automatic Slideshow

Automatic slideshow runs once through all slides in tab order and generates snapshots which can be used for video creation.

Timing

• default slide duration is 1000 ms (defined in the bindings)
• each slide can override its duration
• timing cannot be changed while running

00_on_load

When running automatic slideshow:

• the script named 00_on_load is executed if present
• it runs before the snapshot is taken
• it can control timing
• it can trigger other scripts
• it can take additional snapshots

Scripts starting with ‘00’ are reserved.

All other scripts must be started manually unless invoked from 00_on_load.

Snapshots

Snapshots are taken after 00_on_load completes.

Snapshots are saved to a configurable directory, the default directory is snapshots.

File naming format:

snapshots/NNN_time_<time>_screenshot.png

Where:

• NNN is a zero padded index
• time is the slide time

The slideshow can be interrupted by the user.

Slide State and Restoration

During a slideshow:

• slides are immutable
• script modifications do not persist

When leaving slideshow mode:

• each slide is restored from undo stack memory

Scripts executed outside slideshow mode modify the document normally. The user can choose to save or not save those changes.

Slide Directories

Each slide can define a slide directory.

When a slide directory is set:

• the directory is created if it does not exist
• a stub 00_on_load script is created

Multiple slides may share the same slide directory.

Directory Resolution Order

When executing a script, directories are searched in this order:

• slide directory
• top directory
• scripts paths
• current directory

$directory //= $self->{ANIMATION}{SLIDE_DIRECTORY} // $self->{ANIMATION}{TOP_DIRECTORY} // $self->{SCRIPTS_PATH} // ‘.’ ;

The top directory can be defined on the command line, if not set, the current directory is used.

Slides Bindings

'slides ->' => GROUP
	(
	SHORTCUTS    => '0A0-s',

	'tag as slide'           => '000-s', # make the document a slide, the tab color is changed
	'tag all as slide'       => 'C00-s',
	'untag as slide'         => '00S-S',

	'previous slide'         => '000-p', # these shortcuts navigate the tabs that are also slides
	'previous slide2'        => '00S-N', # they jump over the non slides
	'next slide'             => '000-n', # this let's us mix them
	'first slide'            => '000-g', # insert normal tabs that we can modify to be slides later
	'first slide2'           => '000-0', # remove slides from slideshows, ...

	'set slide time'         => '000-t', # each slide can have it's own time
	'set default slide time' => '00S-T',
	'run slideshow ->'       => '000-r', USE_GROUP('slideshow_run')      # manual slideshow
	'run slideshow once ->'  => '00S-R', USE_GROUP('slideshow_run_once') # automatic slideshow, a snapshot taken for each slide

	'set slide directory'    => '000-d', # if we want specific scripts for this slide, we can give it a special directory

	'animation ->'           => '000-a', USE_GROUP('animation') # bindings for animation/scripts
	),

Slideshow Bindings

Manual

'slideshow_run'    => GROUP
	(
	'pause'          => '000-p' # stop cycling through slides
	'previous slide' => '00S-N' # navigation bindings
	'next slide'     => '000-n'
	'slower'         => '000-s'
	'faster'         => '000-f'
	),

Automatic

'slideshow_run_once' => GROUP
	(
	                # run with a 1000 ms slide time, except if it is set, and take a screenshot
	ENTER_GROUP  => [\&App::Asciio::Actions::Presentation::start_automatic_slideshow_once, [1000, 1]],

	# "$self->{ANIMATION}{SLIDE_DIRECTORY}/00_on_load" will be run if it exists
	),

Running Scripts

Scripts are run in-process, they can access the full Asciio API, the current document, selected elements, and element ids.

Scripts can be started manually, name completion helps you chose the script.

Numbered Scripts

Scripts matching the pattern NN_name can be used for sequential animation.

• scripts are ordered by numeric prefix
• scripts with prefix 00 are reserved
• the lowest numeric prefix runs first
• the user can execute next or previous based on prefix

00_on_load Script

00_on_load runs automatically in automatic slideshow mode.

Using Element IDs

Elements can be assigned ids, ids are intended for use in scripting and animation.

Ids:

• are saved with the document
• are not required to be unique
• may match multiple elements, scripts querying an id receive all matching elements.

It is possible to temporarily display the elements ids for inspection.

'element ->' =>  GROUP
	(
	SHORTCUTS   => '000-e',

	'set id'    => '000-i',
	'remove id' => '00S-I',
	)

Example of “unicode character pointer”, that can be moved around by a script.

It’s also a good example of MACRO to create and assign an id to an element.

'Insert ->' => GROUP
	(
	SHORTCUTS   => '000-i',

	'Add pointer'        => [
				'000-p',
				MACRO
					(
					[\&App::Asciio::Actions::Elements::add_element, ['🡴', 0 ]                       ],
					[\&App::Asciio::Actions::Elements::flip_autoconnect                             ],
					[\&App::Asciio::Actions::Elements::set_id, 'pointer'                            ],
					[\&App::Asciio::Actions::Colors::change_elements_colors, [0, [0.80, 0.10, 1.00]]],
					),
				],
	)

'display options ->' => GROUP
	(
	SHORTCUTS   => '000-z',
	'Flip display element id' => '000-i',
	),

Animation Bindings

'animation ->' => GROUP
	(
	'show animation bindings'     => '00S-question' # the group hides all its bindings, this shows them

	'previous numbered animation' => '000-p', # if scripts start with qr/\d\d/ (except 00_xxxx) we can run them
	'previous numbered animation' => '00S-N', # manually one after the other, forward and backwards
	'next numbered animation'     => '000-n',
	'first numbered animation'    => '000-g',
	're-run animation'            => '000-r',

	'take snapshot'               => '000-s', # builtin snapshot, maybe we need a binding at higher level

	'find and run animation'      => '000-Tab', USE_GROUP('animation_complete')
	),

'animation_complete ->' => GROUP
	(
	'complete complete'     => '000-Tab'       # show a list of scripts matching the current prefix
	'complete complete all' => 'C00-Tab'       # show all the scripts
	'complete backspace'    => '000-BackSpace' # erase a character
	'complete erase'        => 'C00-l'         # erase the prefix
	'complete execute'      => '000-Return'    # run the current script

	"complete $_"           => "000-$_" ('a'..'z', '0'..'9', '_', '-')), # the script characters that are allowed
	),

Generating a Video

Automatic slideshow generates image files.

To create a video:

• run automatic slideshow
• collect generated snapshots
• use an external tool to assemble the video

Video creation is performed outside Asciio but it’s easy to add bindings.

APNG has a command line application, and a module, to generate Animated PNGs.

Advanced Scripting

Advanced scripting allows fine grained control over animation and snapshot timing.

Sequential Animation

Create scripts with numeric prefixes:

• 01_intro
• 02_highlight
• 03_finish

Execute them manually in order or trigger them from 00_on_load.

Custom Timing in scripts (including 00_on_load)

Inside 00_on_load you may:

• control animation timing
• run other scripts
• take snapshots at specific points
• override the slide delay

IMPORTANT: Use asciio_sleep to control timing (sleep would block screen updates)

Example Perl Snippet

set_slide_delay 0 ;

add 'box1', new_box(TEXT_ONLY =>'A'),  0,  2 ;
select_all_script_elements 1 ;
asciio_sleep 500 ;

add 'box2', new_box(TEXT_ONLY =>'B'), 20, 10 ;
select_all_script_elements 1 ;
asciio_sleep 500 ;

add 'box3', new_box(TEXT_ONLY =>'C'), 40,  5 ;
select_all_script_elements 1 ;
asciio_sleep 500 ;

flash_selected_elements ;
take_screenshot ;

Examples

Unix structure

              .---.  .---. .---.  .---.    .---.  .---.
     OS API   '---'  '---' '---'  '---'    '---'  '---'
                |      |     |      |        |      |
                v      v     |      v        |      v
              .------------. | .-----------. |  .-----.
              | Filesystem | | | Scheduler | |  | MMU |
              '------------' | '-----------' |  '-----'
                     |       |      |        |
                     v       |      |        v
                  .----.     |      |    .---------.
                  | IO |<----'      |    | Network |
                  '----'            |    '---------'
                     |              |         |
                     v              v         v
              .---------------------------------------.
              |                  HAL                  |
              '---------------------------------------'

Documenting hardware instrumentation

      _____
     | ___ |
     ||___|| load
     | ooo |--.------------------.------------------------.
     '_____'  |                  |                        |
              v                  v                        v
      .----------.  .--------------------------.  .----------------.
      | module C |  |         module A         |  |    module B    |
      '----------'  |--------------------------|  | (instrumented) |
           |        |        .-----.           |  '----------------'
           '---------------->| A.o |           |          |
                    |        '-----'           |          |
                    |   .------------------.   |          |
                    |   | A.instrumented.o |<-------------'
                    |   '------------------'   |
                    '--------------------------'

Decorating Forth code

       index? dup dup dup dup dup average @ + average ! ." data = " .
    .--------------.
    |  Data Stack  |
    |--------------|
    | next element |-----> average @ + average !
    | dup          |-----> ." data = " .
    | dup          |-----> minv @ < if--.
    | dup          |                    '------> minv ! ." (new minv) " or DROP after ELSE
    | dup          |-----> maxv @ > if---.
    | dup          |                     '---->  maxv ! ." (new maxv) " or DROP after ELSE
    '--------------'
       minv @ < if
       minv ! ." (new minv) "
       else    drop                                                                        \ data > minv so it's ignored
           maxv @ > if
           maxv ! ." (new maxv) "
           else drop                                                                       \ data < maxv so it's ignored
           then
       then
       counter @ 1 - counter !                                                             \ Decrement counter

example 1

describing a class hierarchy

                                 .-Base::Class::Derived_B
                                /
     Something::Else           /
             \                .----Base::Class::Derived_C
              \              /
               '----Base::Class
                     '       \
                    /         '----Latest::Greatest
      Some::Thing--'

German railroad

Graph-Easy is an application that generates graphs in ASCII, a bit like GraphViz.

               ..................................
               :                                v
+------+     +--------+     .............     +---------+     +---------+
| Bonn | --> | Berlin | --> :           : --> | Potsdam | ==> | Cottbus |
+------+     +--------+     :           :     +---------+     +---------+
               ^            :           :                       ^
               |            : Frankfurt :                       |
               |            :           :                       |
             +--------+     :           :     +---------+       |
             |   x    | --> :           : <-- |    y    | ------+
             +--------+     :...........:     +---------+
                              |
                              |
                              v
                            +-----------+
                            |  Dresden  |
                            +-----------+

I re-drew the example above in Asciio.

                 .------------------------------.
                 |                              |
                 |                              v
.------.    .--------.    .-----------.    .---------.  .---------.
| Bonn |-.->| Berlin |-.->| Frankfurt |-.->| Potsdam |->| Cottbus |
'------' |  '--------' |  '-----------' |  '---------'  '---------'
         |             |                |                    ^
       .---.           |                |  .---------.       |
       | x |-----------'                '->| Dresden |       |
       '---'           |                   '---------'       |
       .---.           |                                     |
       | y |-----------'-------------------------------------'
       '---'

There are few interesting things to notice:

• Graph-Easy smartly changes the size of the boxes to accommodate more connections
• Asciio doesn’t have a routing functionality for graph, it would be a nice addition
• Asciio has 4 connectors per box (but you can get around it)

Unicode Example

Asciio does’t generate SVG but, in the spirit of unix tools, rely on another tool to convert text files to SVG.

The “goat” project (https://github.com/blampe/goat) has been chosen to make the conversion, it must be installed, but you can use any converter you want; I recommend having a look athe ecexelent SVGBob too.

See the “Exporter” section to learn how to write your own.

videos

• presentation

• efficient session

• grouping

• working with external commands

  • input to asciio

  • using Asciio’s output

• doing a presentation with Asciio

• writing requirements with Asciio and markdown

Some older videos (15 years!) that show some basic usage:

asciio 1.0

Configuration

Definitions

Configuration file

A file containing pointers to file where:

• stencils are defines
• actions and bindings are defined
• asciio options are configured
• routing hooks are defined
• document importers and exporters are defined

Actions

Code that is added to asciio (a plugin in an other term).

Asciio provides many actions but you can write your own and bind it to a keyboard shortcut.

Bindings

Registered keyboards shortcuts that execute actions.

Asciio configuration file

The default configuration is defined in :

• setup/setup.ini

Asciio’s default action binding files

• setup/actions/default_bindings.pl
• setup/Text/actions/vim_bindings.pl (which overrides default bindings)

User configuration file

Your user configuration file is at $HOME/.config/Asciio/Asciio.ini.

CONFIGURATION FORMAT

{
STENCILS =>
	[
	#'stencils/asciio',
	],

ACTION_FILES =>
	[
	#'actions/xxx.pl',
	],

HOOK_FILES =>
	[
	],

ASCIIO_OBJECT_SETUP =>
	[
	#$ASCIIO_UI eq 'TUI' ? 'asciio_object/tui.pl' : 'asciio_object/gui.pl' ,
	],

IMPORT_EXPORT =>
	[
	#'import_export/ascii.pl',
	],
}

Sections

STENCILS

Contains:

• files defining stencils present in the popup menus
• stencil files that you can drag and drop from

ACTION_FILES

Contains:

• your keyboard bindings
• functionality you want to add to asciio (that you bind keys to), plugins

HOOK_FILES

Contains:

• hooks called after elements have been modified and rendering the drawing starts, mainly used to call CANONIZE_CONNECTIONS.

ASCIIO_OBJECT_SETUP

Contains:

• setup variables that influence asciio’s behavior and appearance

asciio will first read the settings in ‘setup/asciio_object/basic.pl’ then read the settings in the files contained in this section.

Some of the default settings are listed below, refer to ‘setup/asciio_object/basic.pl’ for a complete list

COLOR_SCHEMES => # asciio has two color schemes, and a binding to flip between them
	{
	'night' =>
		{
		background => [0.04, 0.04, 0.04],
		grid => [0.12, 0.12, 0.12],
		grid_2 => [0.22, 0.22, 0.22],
		...
        },
	'system' =>
		{
		background => [1.00, 1.00, 1.00],
		grid => [0.89, 0.92, 1.00],
		grid_2 => [0.79, 0.82, 0.90],
		ruler_line => [0.33, 0.61, 0.88],
		hint_line => [0.5, 0.80, 1],
		hint_line2 => [0.4, 0.7, 0.9],
		element_background => [1.00, 1.00, 1.00],
		element_foreground => [0.00, 0.00, 0.00] ,
		selected_element_background => [0.70, 0.95, 1.00],
		selection_rectangle => [1.00, 0.00, 1.00],
		...
        }
	},

COPY_OFFSET_X                    => 1,  # x offset for paste
COPY_OFFSET_Y                    => 1,  # y offset for paste
CREATE_BACKUP                    => 1,  # create a '.bak' backup file when set
DISPLAY_GRID                     => 1,  # display the asciio grid
DISPLAY_GRID2                    => 1,  # display every tenth grid line in grid_2 color
DISPLAY_RULERS                   => 1,  # display the asciio ruler lines
DISPLAY_SETUP_INFORMATION_ACTION => 1,  # display which actions are registered
DRAG_SELECTS_ARROWS              => 0,  # selection rectangle also selects arrows when set
...

RULER_LINES => # default ruler lines
	[
	...
	],

...

IMPORT_EXPORT

Links to files which define import and export functionality, you could use this to save files to another format.

BINDINGS FORMAT

Asciio processes external configuration files that dynamically define the application’s keybindings, keybindings structure, and context menus.

These files are valid Perl scripts, you can defined code to bind to in the files but we recommend you create a module instead.

Action Definition Commands

Use the following commands to define commands:

Action Definition Formats

The definitions passed to register_action_handlers can take two primary forms:

• Single Action
• Group Definition

Single Action Definition

Single action definition are declared within a pair of square brackets (a Perl array ref).

Example of Single Action:

register_action_handlers
(
'Undo' =>
    [
        ['C00-z', '000-u'],                      # [0] SHORTCUTS
        \&App::Asciio::Actions::Unsorted::undo,  # [1] CODE
        -1,                                      # [2] optional ARGUMENTS
        { ... },                                 # [3] optional BINDING OPTIONS
    ],

# ... more  bindings
);

Binding Options

• HIDE => 1/0, controls if this binding is shown in the bindings help

GROUP Definition

Used for defining a collection of related commands.

The commands typically share a single shortcut that, when pressed, switches the application’s context to the commands defined within the group.

Group Control Keys

The definition must contain the following control keys at the top-level of the group:

Group Actions

Following the control keys, an the ordered list of actions:

Example of Group Definition:

register_action_handlers
(
'grouping ->' =>
    GROUP # create a GROUP
        (
        # control keys
        SHORTCUTS   => '000-g',
        ESCAPE_KEYS => '000-Escape',

        # Single element
        'selected elements' => [ '000-g', \&App::Asciio::Actions::ElementsManipulation::group_selected_elements ],

        # Nested Group
        'Subgroup' => GROUP
                        (
                        SHORTCUTS => '000-a',
                        'Align top' => ['000-t', \&App::Asciio::Actions::Align::align, 'top'],
                        ),

        'Enter Other Group' => USE_GROUP('other_group_name'),
        ),

# ... other actions
);

'group_other_group_name' => GROUP ( ...), # note that 'group_' is needed in the declaration of groups referred to by USE_GROUP

Navigating groups programatically

There are two possibilities:

• run_actions
• run_actions_by name

run_actions runs actions in the current binding (it is used by Asciio to handle keyboard events).

run_actions_by_name executes one of more named functions (with optional arguments); the functions are registered in the default config.

Asciio looks up keyboard events and run the correxponding function in the current binding group.

Groups are also registered functions, functions that manipulates the current binding group.

We can programmatically manipulate the current bindings but it’s much easier to define a group of bindings that we can make the active binding group; that’s exactly what GROUP does.

To change the current keyboard bindings, we just need to run the right GROUP.

$self->run_actions_by_name("the GROUP name") ;

That’s available anywhere but the right way to do it is in the config so we get a keyboard driven flow rather than a code driven flow with if-then-else.

The configuration below is to get in group ‘x’ from group ‘Insert ->’ and back.

Two solutions are presented, the difference is explained below.

Note: the normal behavior when exiting a GROUP, is to reset to the default keyboard bindings.

'Insert ->' => GROUP
	(
	SHORTCUTS => '000-i',
	'X ->'    => ['000-x', USE_GROUP('x')] ,
	),

	'group_x' => GROUP
		(
		SHORTCUTS    => 'group_x',
		ESCAPE_KEYS  => '000-Escape',

		# solution 1
		ESCAPE_GROUP => sub { $_[0]->run_actions_by_name("Insert ->") ;},

		#solution 2
		'return to Insert'   => ['000-Escape', sub{ $_[0]->run_actions_by_name("Insert ->") ; }, undef , {HIDE => 1}],
		),

• if you decide to use solution 1, the code for solution 2 is not needed
• if you decide to use solution 2, the code for solution 1 is not needed
• you can use solution 1 and solution 2 together but in this case there is no gain

Difference:

• solution 1 will change the current bindings but the bindings help
• solution 2 will change the current bindings and display the bindings help

Note:

• we stop capturing keyboard input to GROUP(X) bindings because both solutions use ‘000-Escape’.
• we’re not forced to jump “back” to the previous group, we could jump anywhere, that’s what USE_GROUP does.

Macros

Macros allows Single Action Definition to run multiple commands.

The commands can be:

• the name of another action
• an array containing
  • a Perl subroutine reference to execute
  • optional arguments to be passed to the CODE subroutine

Example of MACRO usage:

'Add diagonal arrow' =>
	[
	'0A0-a',
	MACRO
		(
		'Add arrow',
		'enable diagonals',
		# you can also call actions directly
		# [\&App::Asciio::Actions::Arrow::allow_diagonals, 1],
		)
	],

Binding override

You can re-bind an existing shortcut to another command ; Asciio will generate a warning in the console.

Overriding shortcut 'C00-y'
        new is 'Redo 2' defined in file '.../actions/override_bindings.pl'
        old was 'Redo' defined in file 'actions/default_bindings.pl'

Asciio Keyboard Bindings Reference

Understanding the Binding System

Asciio uses a hierarchical keyboard binding system where many operations are organized into groups accessed through prefix keys.

It’s faster and easier to work with keyboard shortcuts than the mouse plus the number of combination of mouse buttons * control-keys is limited.

Asciio bindings are vim-like, they initially take a little time to get used to and often take multiple key presses but they are much more logical as families of commands are accessed with shortcuts that start with the same letter.

Both GUI and TUI have vim-like bindings, the GUI has a few extra bindings that are usually found in GUI applications; bindings can be user modified. See configuration/user_bindings

Actions

Code that is added to asciio (a plugin is another term).

Asciio provides many actions but you can write your own and bind it to a shortcut.

Bindings

Registration of shortcuts that execute actions.

The default Bindings are setup by the register_action_handlers in the following files:

• setup/actions/default_bindings.pl
• setup/Text/actions/vim_bindings.pl (which overrides default bindings)

User defined bindings

The bindings can be changed in your user configuration.

Set the ACTION_FILES section of file ‘$HOME/.config/Asciio/Asciio.ini’ to point at one or more files that will be loaded by asciio.

The files contain bindings override but can also contain actions code.

Show Bindings Completion

Binding: «zb»

Makes Asciio show the current bindings iwhile you type.

You can add it in your config:

USE_BINDINGS_COMPLETION => 1,

Embedded bindings

Extra bindings can be embedded in an asciio document with command line options

Binding Notation

Bindings are shown using the notation «key» where:

• «key» means press that key directly
• «Shift+Key» means hold Shift and press the key
• «Ctrl+Key» means hold Control and press the key
• «Alt+Key» means hold Alt and press the key

Prefix System

Many operations require a prefix key followed by an operation key:

• Press the prefix key (e.g., «t» for tab operations)
• Then press the operation key (e.g., «n» for new tab)
• Result: «t» + «n» creates a new tab

Escaping Groups

When in a binding group, press «Escape» to return to root level bindings.

Why vim-like bindings

Combinations

To simplify, let’s start with having 26 letters accessible on the keyboard, no uppercase.

• using ctl + alt + key gives us around 100 combinations
• letter + letter gives use around 650 combinations
• letter + letter + letter gives use around 18 000 combinations

If we had uppercase, ie, 52 letters

• using ctl + alt + key gives us around 200 combinations
• letter + letter + letter gives use around 140 000 combinations

Speed

typing ctl + alt + key is not faster than key + key + key, and even less key + key

Structure and mnemonics

Of course we don’t need tens of thousands of combinations

But do you know what CA0-a does? C0S-A? 0AS-a? CAS-A? C00-A? 0A0-a? 00S-a? … without looking at the docs?

The whole point vim-like binding is to remember them, it’s not a perfect system but it’s expandable and easier to remember

Let me give you and example, we have multiple types of boxes, let’s say

• normal
• unicode
• shrink
• with hash tag as a border

Let’ start with a generic binder «i» for insert and «b» for box

• «ibb» normal, we cound have used «ibn» too but the most used keys are usually double for speed
• «ibu» unicode
• «ibs» shrink
• «ibh» with hash tag as a border

The good thing here is that we can use the same thing for arrows but with «ia» as a prefix.

But let’s imagine that you come up with 4 new types of unicode borders (well you have), I don’t want to imagine how to do that with the mouse, and with ctl + …. we’ve run out of shortcuts that are easy to remember. on the other hand …

• «ibb» normal, we cound have used «ibn» too but the most used keys are usually double for speed
• «ibuu» unicode
• «ibu1» unicode
• «ibu2» unicode
• «ibu3» unicode
• «ibs» shrink
• «ibh» with hash tag as a border

I used 1, 2, and 3 because I was lacking imagination but

• double
• thick
• whatnot

would have given us keys to remember.

Quizz

Do you remember (although you’ve just seen it) …

• insert a box
• insert a box using unicode type 2
• insert a box that shrinks
• insert a box with the default unicode

Bindings Index

Proxy groups

• help
• leader

Root groups

• Working efficiently
• clipboard
• edit
• element_selection
• find
• mouse
• mouse emulation
• mouse motion
• movements
• zoom

Groups

• Insert ->
• align ->
• angled_arrow_type_change
• animation ->
• animation_complete ->
• arrow ->
• attributes
• both_connectors
• box_type_change
• change_type
• clone ->
• color
• commands ->
• connectors
• cross
• debug ->
• diagonal
• display options ->
• element ->
• element_add_connectors
• ellipse_type_change
• end_connectors
• eraser ->
• find ->
• fixed_both_connectors
• fixed_end_connectors
• fixed_start_connectors
• freeze
• git ->
• graph selection ->
• grouping ->
• image box ->
• image_control
• insert_box
• insert_connected
• insert_element
• insert_line
• insert_multiple
• insert_ruler
• insert_stencil
• insert_unicode
• modification
• move arrow ends ->
• paste ->
• pen ->
• pen_eraser
• polygon
• rhombus_type_change
• selection ->
• slides ->
• slideshow_run
• slideshow_run_once
• spellcheck
• start_connectors
• stripes ->
• tabs ->
• triangle_down_type_change
• triangle_up_type_change
• wirl_arrow_type_change
• yank ->

help

Navigation: - help

Root groups

• Shortcut: «00S-question»

leader

Navigation: - leader

Shortcuts to bindings

• Shortcut: «000-space»

Working efficiently

Navigation: - Working efficiently

Bindings to quickly create a diagram

• Shortcut: «Missing shortcuts!»

clipboard

Navigation: - clipboard

Clipboard functions

• Shortcut: «Missing shortcuts!»

edit

Navigation: - edit

Edit elements

• Shortcut: «Missing shortcuts!»

element_selection

Navigation: - element_selection

Selection functions

• Shortcut: «Missing shortcuts!»

find

Navigation: - find

Search and replace function

• Shortcut: «Missing shortcuts!»

mouse

Navigation: - mouse

Mouse event handler

• Shortcut: «Missing shortcuts!»

mouse emulation

Navigation: - mouse emulation

Move mouse with keyboard

• Shortcut: «Missing shortcuts!»

mouse motion

Navigation: - mouse motion

Mouse motion events

• Shortcut: «Missing shortcuts!»

movements

Navigation: - movements

Move elements functions

• Shortcut: «Missing shortcuts!»

zoom

Navigation: - zoom

Zoom functions

• Shortcut: «Missing shortcuts!»

Insert ->

Navigation: - Insert ->

Insert asciio elements

• Shortcut: «000-i»

align ->

Navigation: - align ->

Element alignment functions

• Shortcut: «00S-A»

angled_arrow_type_change

Navigation: - angled_arrow_type_change

Angled arrow type change

• Shortcut: «angled_arrow_type_change»

animation ->

Navigation: - animation ->

Animation scripts

• Shortcut: «animation»

animation_complete ->

Navigation: - animation_complete ->

Animation script competion

• Shortcut: «animation_complete»

arrow ->

Navigation: - arrow ->

Arrow manipulation functions

• Shortcut: «000-a»

attributes

Navigation: - attributes

Elements attributes copy/paste

• Shortcut: «attributes»

both_connectors

Navigation: - both_connectors

Modify both start and end connectors

• Shortcut: «both_connectors»

box_type_change

Navigation: - box_type_change

Box type change

• Shortcut: «box_type_change»

change_type

Navigation: - change_type

Change from one type of element to another

• Shortcut: «change_type»

clone ->

Navigation: - clone ->

Cloning and stamping

• Shortcut: «000-c»

color

Navigation: - color

Missing description!

• Shortcut: «color»

commands ->

Navigation: - commands ->

Application bindings

• Shortcut: «00S-colon»

connectors

Navigation: - connectors

Enable or disable element connectors

• Shortcut: «connectors»

cross

Navigation: - cross

Cross mode enable/disable

• Shortcut: «cross»

debug ->

Navigation: - debug ->

Debug functions

• Shortcut: «00S-D»

diagonal

Navigation: - diagonal

Enable or disable diaonal arrows

• Shortcut: «diagonal»

display options ->

Navigation: - display options ->

Display options

• Shortcut: «000-z»

element ->

Navigation: - element ->

Modify connectors

• Shortcut: «000-e»

element_add_connectors

Navigation: - element_add_connectors

Add and remove connectors to elements

• Shortcut: «element_add_connectors»

ellipse_type_change

Navigation: - ellipse_type_change

Ellipse type change

• Shortcut: «ellipse_type_change»

end_connectors

Navigation: - end_connectors

Modify end connector look

• Shortcut: «end_connectors»

eraser ->

Navigation: - eraser ->

Eraser mode

• Shortcut: «00S-E»

find ->

Navigation: - find ->

Search and replace mode

• Shortcut: «000-f»

fixed_both_connectors

Navigation: - fixed_both_connectors

Modify both start and end connectors to static

• Shortcut: «fixed_both_connectors»

fixed_end_connectors

Navigation: - fixed_end_connectors

Modify end connector to static

• Shortcut: «fixed_end_connectors»

fixed_start_connectors

Navigation: - fixed_start_connectors

Modify start connector to static

• Shortcut: «fixed_start_connectors»

freeze

Navigation: - freeze

Freeze and thaw elements

• Shortcut: «freeze»

git ->

Navigation: - git ->

Git mode

• Shortcut: «00S-G»

graph selection ->

Navigation: - graph selection ->

Select elements in the elements graph

• Shortcut: «00S-S»

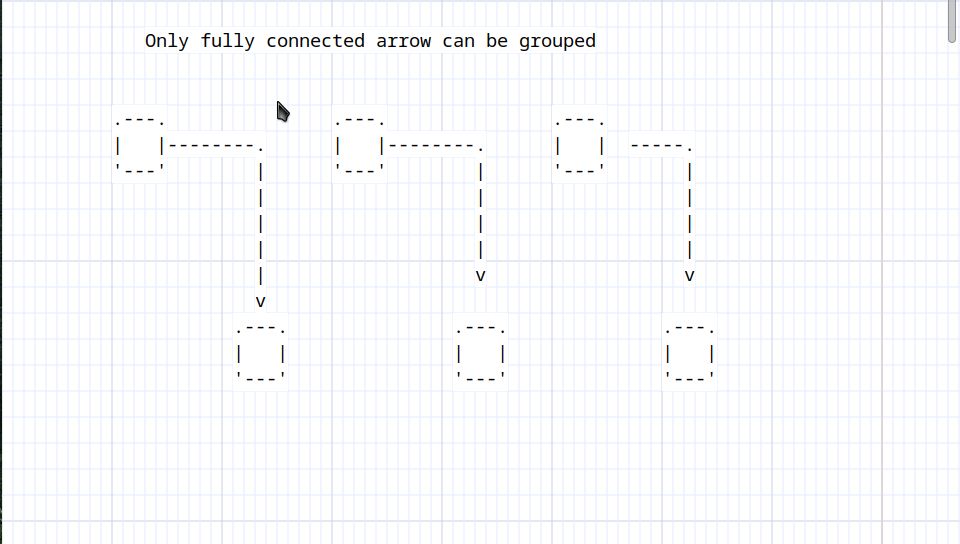

grouping ->

Navigation: - grouping ->

Group elements and control their Z position

• Shortcut: «000-g»

image box ->

Navigation: - image box ->

Insert and control an image box

• Shortcut: «00S-I»

image_control

Navigation: - image_control

Control image box

• Shortcut: «image_control»

insert_box

Navigation: - insert_box

Insert Asciio boxes ad exec-boxes

• Shortcut: «insert_box»

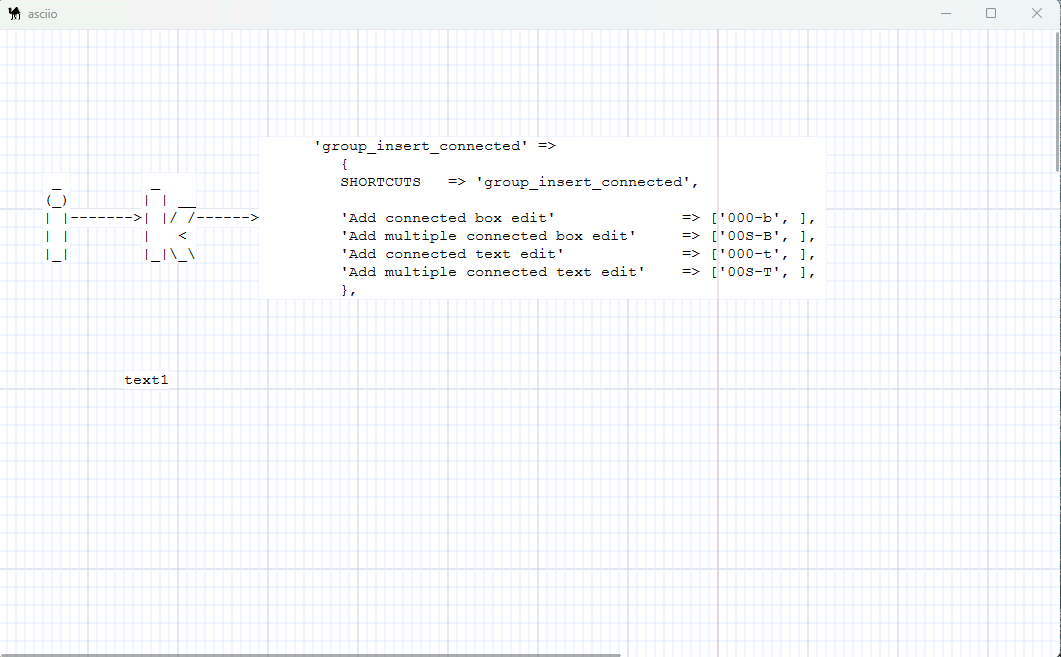

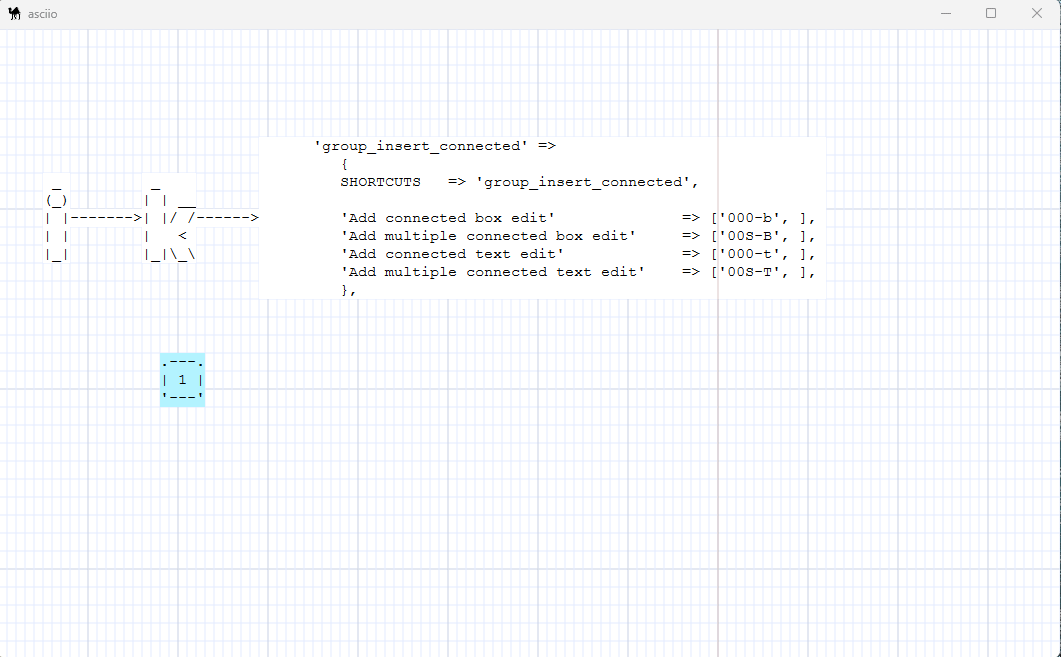

insert_connected

Navigation: - insert_connected

Insert element and connect them automatically

• Shortcut: «insert_connected»

insert_element

Navigation: - insert_element

Insert divers asciio elements

• Shortcut: «insert_element»

insert_line

Navigation: - insert_line

Insert line elements

• Shortcut: «insert_line»

insert_multiple

Navigation: - insert_multiple

Insert multilpe elements at once

• Shortcut: «insert_multiple»

insert_ruler

Navigation: - insert_ruler

Insert rules in the canvas

• Shortcut: «insert_ruler»

insert_stencil

Navigation: - insert_stencil

Insert elements from stencils

• Shortcut: «insert_stencil»

insert_unicode

Navigation: - insert_unicode

Insert unicode elements

• Shortcut: «insert_unicode»

modification

Navigation: - modification

Element Ascci or Unicode

• Shortcut: «modification»

move arrow ends ->

Navigation: - move arrow ends ->

Move arrow end with keyboard

• Shortcut: «0A0-a»

paste ->

Navigation: - paste ->

Paste elements from the clipboard

• Shortcut: «000-p»

pen ->

Navigation: - pen ->

Pen mode

• Shortcut: «00S-P»

pen_eraser

Navigation: - pen_eraser

Pen mode eraser

• Shortcut: «pen_eraser»

polygon

Navigation: - polygon

Plygon selection mode

• Shortcut: «polygon»

rhombus_type_change

Navigation: - rhombus_type_change

Rhombus type change

• Shortcut: «rhombus_type_change»

selection ->

Navigation: - selection ->

Selection modes

• Shortcut: «000-s»

slides ->

Navigation: - slides ->

Slides mode

• Shortcut: «0A0-s»

slideshow_run

Navigation: - slideshow_run

Missing description!

• Shortcut: «slideshow_run»

slideshow_run_once

Navigation: - slideshow_run_once

Missing description!

• Shortcut: «slideshow_un_once»

spellcheck

Navigation: - spellcheck

Spell check selected elements

• Shortcut: «spellcheck»

start_connectors

Navigation: - start_connectors

Modify start connector look

• Shortcut: «start_connectors»

stripes ->

Navigation: - stripes ->

Transfor elements to stripe groups

• Shortcut: «0A0-g»

tabs ->

Navigation: - tabs ->

Create and manipulate tabs

• Shortcut: «000-t»

triangle_down_type_change

Navigation: - triangle_down_type_change

Triangle down type change

• Shortcut: «triangle_down_type_change»

triangle_up_type_change

Navigation: - triangle_up_type_change

Triangle up type change

• Shortcut: «triangle_up_type_change»

wirl_arrow_type_change

Navigation: - wirl_arrow_type_change

Wirl arrow type change

• Shortcut: «wirl_arrow_type_change»

yank ->

Navigation: - yank ->

Yank elements to the clipboard

• Shortcut: «000-y»

For Developers

Scripting

# Generated by documentation/scripting/multi_wirl.pl

.------.
| box1 |<-----------------------------------.
'------'                                    |
    |                                   .------.
    |                                   | box3 |
    |                                   '------'
    |                                       ^
    |                                       |
    |               .------.                |
    '-------------->| box2 |----------------'
                    '------'


     __________
     \         \
      \  line 1 \
       ) line 2  )
      /  line 3 /
     /_________/

Executing your scripts

Executing your scripts

transform JSON, via Data::TreeDumper, to Asciio script

The *json_dtd_to_asciio_script’ script is installed with Asciio. It will read a JSON stream from stdin.

It takes the following arguments:

• title
• x position
• y position
• ‘box’, if you want the data to be boxed
• start_level, 0/1: 0 meanss no start tree grlyph

<coordinates_json ./script/json_dtd_to_asciio_script '' 10 10 box 0 | stdin_to_asciio # send json element to running asciio

Simplified scripting interface

The simplified scripting interface is an API which hides some of the scripting details for you.

Examples of scripts, using both the simplified API and full API, can be found in the documentation/scripting directory of the distribution.

Simplified scripting API

Create a new Perl script

Crate a file and add these lines

use strict; use warnings;

use App::Asciio::Scripting ;

This will set some sanity checks on your code and load the simplified scripting interface.

Adding boxes

add 'box1', new_box(TEXT_ONLY =>'box1'),  0,  2 ;
add 'box2', new_box(TEXT_ONLY =>'box2'), 20, 10 ;
add 'box3', new_box(TEXT_ONLY =>'box3'), 40,  5 ;

The simplified scripting interface lets you name your object so you can later connect them together.

Adding connections

connect_elements 'box1', 'box2', 'down' ;
connect_elements 'box2', 'box3' ;
connect_elements 'box3', 'box1', 'up' ;

You can hint Asciio about the direction of your arrows.

Canonizing connections

Asciio tries to route the arrows properly, this is done automatically in the UIs but you need to do it manually in scripts.

optimize ;

Printing and saving the result

save_to "from_script.asciio" ;

ascii_out ;

You can save your work to an asciio file or print it out

Adding multi-wirl arrows

You can write more advanced script where you route multi sections arrows around your elements.

     |
     |
     |
     |
     |
     '----.
          |
          '----.
               |
               |
               |
               |
               |
               |
            <--'

You’ll also need to use the right module; in fact you have access to everything that’s in Asciio from your scrips, it’s just a little bit more work than using the simplified interface.

# documentation/scripting/multi_wirl.pl

use strict; use warnings;

use App::Asciio::Scripting ;

#-----------------------------------------------------------------------------

add 'multi_wirl', new_wirl_arrow([5, 5, 'downright'], [10, 7, 'downright'], [7, 14, 'downleft']), 5, 5 ;

ascii_out ;

Full example

You can find more examples in the documentation/scripting/ library of the project.

#  documentation/scripting/multi_wirl.pl

use strict; use warnings;

use App::Asciio::Scripting ;

#-----------------------------------------------------------------------------

add 'text1', new_text(TEXT_ONLY =>'text'),  22,  20 ;

add 'box1', new_box(TEXT_ONLY =>'box1'),  0,  2 ;
add 'box2', new_box(TEXT_ONLY =>'box2'), 20, 10 ;
add 'box3', new_box(TEXT_ONLY =>'box3'), 40,  5 ;

connect_elements 'box1', 'box2', 'down' ;
connect_elements 'box2', 'box3' ;
connect_elements 'box3', 'box1', 'up' ;
connect_elements 'box2', 'text1' ;

my $process = add_type 'process', 'Asciio/Boxes/process', 5, 15 ;
$process->set_text("line 1\nline 2\nline 3") ;

optimize ;

save_to "from_script.asciio" ;

ascii_out ;

Executing your script

From the command line

The script is a normal perl script.

perl my_asciio_script.pl

From within Asciio

Binding: «:!»

Pick the file you want to execute.

Or pass it on the command line

asciio -s full_path_to_script

Via Asciio’s Web server

You can POST scripts via HTTP.

Asciio runs a web server at port 4444; you can change the port with –port other_port.

script commands

POST http://localhost:4444/script script=“add ‘1’, new_box, 0, 0 ;”

You can have multiple commands in your script.

script file

POST http://localhost:4444/script_file script=“path_to_script”

connecting to Asciio Web server

• directly from your application for visualisation (python example)

• via a command line application like xh or httpie.
• piping to stdin_to_asciio script which is installed with asciio (uses xh).

# bash script that adds an element to an asciio instance, offsets it, and deletes it

# create a script to add one element, the script can contain many scripting commands
# httpie has a large startup time, use xh instead

script= ; for i in $(seq 1) ; do script="$script add '1', new_box(TEXT_ONLY =>'$i'),  $((($i - 1) * 6)),  $((($i - 1) * 4)) ;" ; done

# execute the script
xh -f POST http://localhost:4444/script script="$script"

# offset the element
for i in $(seq 25) ; do sleep .05 ; xh  -f POST http://localhost:4444/script script="offset '1', 1, 1 ;" ; done

# delete the element
xh  -f POST http://localhost:4444/script script="delete_by_name '1' ;"

Simplified Scripting API

APIs are defined in lib/App/Asciio/Scripting.pm

add

Adds a named element:

• element_name
• element, see new_box new_text, … below
• x coordinate
• y coordinate

add 'text1', new_text(TEXT_ONLY =>'text'),  22,  20 ;

add_connection

Create an arrow and connects two named elements with it, you can pass a routing hint.

add 'box1', new_box(TEXT_ONLY =>'box1'),  0,  2 ;
add 'box2', new_box(TEXT_ONLY =>'box2'), 20, 10 ;

connect_elements 'box1', 'box2', 'down' ;

add_ruler_line

Adds a ruler line.

• axis: ‘vertical’ or ‘horizontal’
• position

add_ruler_line 'vertical, 10 ;

add_type

Adds a named element:

• element_name
• element_type
• x coordinate
• y coordinate

Returns the element.

my $process = add_type 'process', 'Asciio/Boxes/process', 5, 15 ;

asciio_sleep

use to sleep in a script, sleep blocks update

ascii_out

Prints the diagram, as ASCII, to stdout.

ascii_out ;

change_selected_elements_color

Changes selected elements background or foreground color.

change_selected_elements_color 1, [1, 0, 0] ; # foreground color to red

connect_elements

Connects named elements with a wirl-arrow.

connect_elements 'box2', 'text1' ;

create_undo_snapshot

Creates an undo snapshot.

create_undo_snapshot ;

delete_all_ruler_lines

Deletes all ruler lines.

delete_all_ruler_lines ;

delete_by_name

Deletes an element by name

delete_by_name 'text1' ;

delete_selected_elements

Deletes selected elements

delete_selected_elements ;

deselect_all_elements

Deselects all the elements in Asciio.

deselect_all_elements ;

deselect_all_script_elements

Deselects all the elements added by the script.

deselect_all_script_elements ;

generate_keyboard_mapping

Writes the current keyboard bindings to a file

get_canonizer

Canonizes a connection.

my $box1  = add 'box1',  new_box(TEXT_ONLY =>'box1'), 0, 2 ;
my $box2  = add 'box2',  new_box(TEXT_ONLY =>'box2'), 20, 10 ;
my $arrow = add 'arrow', new_wirl_arrow (), 0,  0 ;

my $start_connection = move_named_connector($arrow, 'startsection_0', $box1, 'bottom_center');
my $end_connection = move_named_connector($arrow, 'endsection_0', $box2, 'bottom_center') ;

die "missing connection!" unless defined $start_connection && defined $end_connection ;

set_connection($start_connection, $end_connection) ;

get_canonizer()->([$start_connection, $end_connection]) ;

get_option

Get one of the options passes as arguments to asciio. Used in text_toasciio.

move

Moves a namex element to a new coordinate:

• element name
• x position
• y position

move 'text1', 22,  20 ;

move_named_connector

Arrows and text elements are created separately in scripts, this allows you to connect elements together.

new_box

Creates a new box element. Use it with add.

new_box() ; # default box text
new_box(TEXT_ONLY =>'text') ;

new_script_asciio

Internal function used to create an asciio object for running scripts.

new_text

Creates a new text element. Use it with add.

new_text(TEXT_ONLY =>'text') ;

new_wirl_arrow

Creates a new wirl-arrow element. Use it with add.

Pass wirl arrow section coordinates and directions as arguments.

new_wirl_arrow([5, 5, 'downright'], [10, 7, 'downright'], [7, 14, 'downleft']) ;

offset

Offsets a named element:

• element name
• x offset
• y offset

offset 'text1', 22,  20 ;

optimize

Optimizes the connections.

optimize

optimize_connections

Calls asciio routing hook.

quit

Closes Asciio

asciio_sleep 2000 ; # wait for slideshow which it driven by timer events, to end
quit ;

reset_screenshot_index

Screenshot index are incremented for each screenshot taken, you can set the start index with this function.

run_external_script_text

Will run the passed script (text not file name)

Running scripts passed as text is how the asciio web server works, allowing other processes to use asciio for display

save_to

Saves the diagram to a file in Asciio’s native format.

save_to 'diagram.asciio' ;

select_all_elements

Selects all the elements in Asciio.

select_all_elements ;

select_all_script_elements

Selects all the elements added by the script.

select_all_script_elements ;

select_by_name

Selects an elements by name.

select_by_name 'A' ;

select_elements

Select or deselects the passed elements

select_elements 1, $element, $element ... # 1 to select, 0 to deselect

set_slide_delay

override a slide delay from the script

start_automatic_slideshow

Runs the slideshow once

By default the slide lay is set to 1000 ms and screenshots are taken, you can pass arguments to change the defaults

start_automatic_slideshow [1000, 1] ;

start_updating_display

Start updating the display; display will automatically be updated from when this is called. An update is also made.

start_updating_display

stop_updating_display

Stops updating the display until start_updating_display is called; this can be used to reduce flickering.

stop_updating_display

take_screenshot

Takes a screenshot of the slide.

file_name is: “screenshots/”. sprintf(“%03d”, $index) . “time${slide_time}_screenshot.png” ;

terminal output: “APNG: $file_name” . ($time ? “:$time “ : ’ ’) ;

take_screenshot_and_sleep

takes a screenshot of the slide and calls asciio_sleep

file_name is: “screenshots/”. sprintf(“%03d”, $index) . “time${slide_time}_screenshot.png” ;

terminal output: “APNG: $file_name” . ($time ? “:$time “ : ’ ’) ;

to_ascii

Returns the diagram as ASCII.

to_ascii ;

to_asciio

Returns an asciio document, used in text_to_asciio

update_display

Force a display update, API functions usually do it automatically.

Modifying Asciio

Bindings

Goals when adding bindings:

• keep code separate from other bindings code if the new bindings are not very general, ie: code them in their own module

• align the structures

• avoid long or generic or numbered name

• if possible the bindings should be the same as the vim-bindings

  • some GUI standards may require different bindings, IE: C00-A to select everything

• create an equivalent binding set in the vim bindings file

• documents the bindings

  • name, keep them logical, start with an uppercase
  • key
  • what they do, preferably with some screenshot

• don’t use control, shift and alt if possible (logical)

• split groups if they become too large

• sort by name or key if possible

Capturing groups with overlay

Define overlays

my $click_choice_element = ['Asciio/box', 0] ;
my $box_overlay =
	[
	[0, 0, '.'],
	[1, 0, '-'],
	[2, 0, '-'],
	[3, 0, '-'],
	[4, 0, '.'],

	[0, 1, '|'],
	[4, 1, '|'],

	[0, 2, "'"],
	[1, 2, '-'],
	[2, 2, '-'],
	[3, 2, '-'],
	[4, 2, "'"],
	] ;

my $text_overlay =
	[
	[0, 0, 'T.'],
	[1, 0, 'e'],
	[2, 0, 'x'],
	[3, 0, 't'],
	] ;

my $arrow_overlay =
	[
	[2, -2, '.'],
	[3, -2, '-'],
	[1, -1, '/'],
	[0, 0,  "'"],
	] ;

Declare callbacks

my $click_element_overlay = $box_overlay ;

sub click_choice_add_element { App::Asciio::Actions::Elements::add_element($_[0], $click_choice_element) ; }

sub click_element_choice
{
my ($asciio, $args) = @_ ;
($click_element_overlay, $click_choice_element) = $args->@* ;
$asciio->update_display ;
}

sub click_element_enter { print "enter!!\n" ; my ($asciio) = @_ ; $asciio->set_overlays_sub(\&click_element_overlay) ; $asciio->update_display ; }
sub click_element_escape { my ($asciio) = @_ ; $asciio->set_overlays_sub(undef) ; $asciio->update_display ; }

sub click_element_mouse_motion
{
my ($asciio, $event) = @_ ;

App::Asciio::Actions::Mouse::mouse_motion($asciio, $event) ;
$asciio->update_display() ;
}

sub click_element_overlay
{
my ($asciio) = @_ ;
my @overlays = map { [ $asciio->{MOUSE_X} + $_->[0], $asciio->{MOUSE_Y} + $_->[1], $_->[2] ] } @$click_element_overlay ;

@overlays
}

Declare bindings

register_action_handlers
(
'insert on click' =>
	{
	SHORTCUTS => '0A0-i',
	ENTER_GROUP => \&click_element_enter,
	ESCAPE_KEY => '000-Escape',

	'click element escape'  => [ '000-Escape',          \&click_element_escape                                               ],
	'click element motion'  => [ '000-motion_notify',   \&click_element_mouse_motion                                         ],

	'click element insert'  => [ '000-button-press-1',  \&click_choice_add_element                                           ],
	'click element arrow'   => [ '000-a',               \&click_element_choice, [$arrow_overlay, ['Asciio/angled_arrow', 0]] ],
	'click element box'     => [ '000-b',               \&click_element_choice, [$box_overlay,   ['Asciio/box', 0]]          ],
	'click element text'    => [ '000-t',               \&click_element_choice, [$text_overlay,  ['Asciio/text', 0]]         ],

	},
) ;

Debugging

See the Debugging bindings.

Asiio can output to the console, any call to print will be displayed in it.

You can use Data::TreeDumper to display structured debug output.

You can of course run Asciio in the perl debugger.

Basic introduction

When the borders of two text elements intersect, we generate some compensating characters to cover the borders, resulting in nicer graphics

          |            ││    │  │
          |            ││    │  │
     -----|--->      ──││────│──│─
          |            ││    │  │
          |            ││    │  │
          v

Look at the text above, their borders are overlapping each other. The text we need to generate is as follows:

          |            ││    │  │
          |            ││    │  │
     -----+--->      ──┼┼────┼──┼─
          |            ││    │  │
          |            ││    │  │
          v

We need to generate padding characters at their boundaries, then the steps are as follows:

1. find the cross point.
2. Determine the characters to be filled at the current cross point according to the characters around the cross point.
3. Determine whether the current cross point has the expected fill character, if so, keep it, if not, add it, and delete the old fill character.
4. remove all filling characters that are not at cross points.
5. update drawing.

Detailed steps

Find the cross point

The cross point must be the coverage of characters, and the characters that cover each other are the characters we care about.

The characters we care about refer to commonly used tab characters, or ascii plus dots, etc.

Commonly used symbols include these, of course not only these

'-', '|', '.', '\'', '\\', '/', '+',
'─', '│', '┼', '┤', '├', '┬', '┴', '╭', '╮', '╯', '╰',
'━', '┃', '╋', '┫', '┣', '┳', '┻', '┏', '┓', '┛', '┗',
'═', '║', '╬', '╣', '╠', '╦', '╩', '╔', '╗', '╝', '╚',
'╫', '╪', '╨', '╧', '╥', '╤', '╢', '╡', '╟', '╞', '╜',
'╛', '╙', '╘', '╖', '╕', '╓', '╒'

condition of cross points:

1. text elements crossed
2. The two characters that intersect each other are the characters we care about

When the condition is found to be met, both characters need to be logged. At the same time, we need to record the characters around the cross point, because they absolutely determine what kind of cross point is generated.

Record the upper, lower, left, and right characters. If you want to achieve diagonal crossing, you also need to record characters at 45 degrees, 135 degrees, 225 degrees, and 315 degrees.

Judgment scene

General situation

First of all, all cross characters are directional, we need to group them by direction and type.

Let me give you an example, if the center has generated a character┼, Then we can use the method of proof by contradiction, its left side must be these characters, otherwise it is unreasonable.

'─',    '┼',    '├',    '┬',    '┴',    '╭',    '╰'

These characters all can appear to the left of it(Because their right sides can be extended to become a line), But if these characters do not appear on the left side of ┼, then we think it is unreasonable to use this ┼, and the disproof condition is false.

'-', '|', '.', '\'', '\\', '/', '+',
'─', '│', '┼', '┤', '├', '┬', '┴', '╭', '╮', '╯', '╰',
'━', '┃', '╋', '┫', '┣', '┳', '┻', '┏', '┓', '┛', '┗',
'═', '║', '╬', '╣', '╠', '╦', '╩', '╔', '╗', '╝', '╚',
'╫', '╪', '╨', '╧', '╥', '╤', '╢', '╡', '╟', '╞', '╜',
'╛', '╙', '╘', '╖', '╕', '╓', '╒'

Make assumptions about the occurrence of each possible padding crossing character above, untilSupposed to be true.

                             │
                           ──│──
                             │

For the plus sign, the condition for its appearance is that:

1. A character in the upper character set appears in the upper direction
2. A character in the down direction character set appears in the down direction
3. A character in the left-direction character set appears in the left direction
4. A character in the right-direction character set appears in the right direction

If these conditions are met, the intermediate characters can be corrected as ┼:

                             │
                           ──┼──
                             │

Let’s look at a more complex situation, The intersection below, we know, needs one ╤ to fill.

  ═══│════
     │
     │

For the ╤ sign, the condition for its appearance is that:

1. Left is one of the left characters of the double-line character set
2. Right is one of the right characters of the double-line character set
3. Down is one of the down characters in the single-line character set
4. Up cannot be one of the up characters in the single-line character set

Pay attention to the bold part above, because if this condition is true, then the filling character should be ╪, not ╤.

Improve efficiency

There is no need to perform calculations every time to determine the characters filled in the middle. Whenever a new scene calculation occurs, we can save the calculation result in a cache and read it directly next time without performing logical calculations again.

A hash table is most suitable for this, and the hash key can use a combination of upper, lower, left, and right characters(The oblique lines are the four diagonal directions.).

An additional case needs to be considered separately

   ││
 ──││─────
   ││
   ││

please see this text, It is expected that we are going to get the following text:

   ││
 ──┼┼─────
   ││
   ││

As you noticed, there are two plus signs filled.

Let’s take the point that needs to be filled on the left as an example:

We can see that characters in three directions meet the requirements, but characters in one direction do not meet the requirements. But the point on the right is actually also an cross point, it has two characters, one in the foreground and one in the background. The character in the background is ok, so we think it ok!

In summary: If the character next to it is also an cross point, then either the foreground character or the background character of the intersection can meet the requirements.So I said earlier that the foreground and background characters of the cross point all need to be recorded.In fact, there may be more than one character that meets the condition in the background, so all of these characters need to be considered, not just limited to 2 characters.

The case of character coverage

There is another situation that needs to be explained separately,Similar to above but slightly different

 ╭─────╮
 │ ╭─────╮
 │ │     │
 │ │     │
 ╰─│     │
   ╰─────╯

The text we need to get is this:

 ╭─────╮
 │ ╭───┴─╮
 │ │     │
 │ │     │
 ╰─┤     │
   ╰─────╯

This looks like two boxes stacked,According to the above statement, the overlapping parts, both foreground characters and background characters must be considered.**But not like this!**The overlapping foreground characters are spaces, and spaces are not characters in the character set, so they are not considered.

To put it simply: as long as it is not an cross point, only foreground characters are considered.

The definition of the cross point has already been mentioned in the previous chapter

A method to simplify logical judgment

When we determine what characters should be filled in a point, we first consider the characters in the four directions. Then after these characters are considered, characters in three directions are considered, and finally characters in two directions are considered. The advantage of this is that if the characters in the four directions do not meet the conditions, then when judging the characters in the three directions, there is no need to repeatedly consider that a certain character may be a character in the four directions, because it has been ruled out before. Similar logic is used for two-way characters. This can greatly reduce the complexity of logical judgment.

A better judgment algorithm

Use 3 bits to represent the attributes of chars in each direction.

none        : 0
ascii       : 1
thin        : 2
bold        : 3
double      : 4
dotted      : 5
bold dotted : 6

A 32-bit integer can precisely represent all attributes of a character.

                   ┃ 315 ┃ 225 ┃ 135 ┃ 45  ┃right┃left ┃down ┃ up
   │3│3│2│2│2│2│2│2┃2│2│2┃2│1│1┃1│1│1┃1│1│1┃1│1│ ┃ │ │ ┃ │ │ ┃ │ │ │
   │1│0│9│8│7│6│5│4┃3│2│1┃0│9│8┃7│6│5┃4│3│2┃1│0│9┃8│7│6┃5│4│3┃2│1│0│
───┼─┼─┼─┼─┼─┼─┼─┼─╂─┼─┼─╂─┼─┼─╂─┼─┼─╂─┼─┼─╂─┼─┼─╂─┼─┼─╂─┼─┼─╂─┼─┼─┼───
  ┼│ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │1│ ┃ │1│ ┃ │1│ ┃ │1│ │
  ┤│ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │1│ ┃ │ │ ┃ │1│ ┃ │1│ │
  ╫│ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │1│ ┃ │1│ ┃1│ │ ┃1│ │ │
  >│ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │1┃ │ │ ┃ │ │ ┃ │ │1│
  <│ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │1┃ │ │ ┃ │ │1│
  +│ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │1┃ │ │1┃ │ │1┃ │ │1│
   │ │ │ │ │ │ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ ┃ │ │ │

To determine what character a crosspoint should be, we should take the neighbors in the eight directions of this crosspoint.

Then, we need to look at the properties of these eight characters. The judgment logic is as follows:

1. The character above takes the properties of the part below.
2. The character to the left takes the properties of the part to the right.
3. The character below takes the properties of the part above.
4. The character to the right takes the properties of the part to the left.
5. The character at 45 degrees takes the properties of the 225-degree part.
6. The character at 135 degrees takes the properties of the 315-degree part.
7. The character at 225 degrees takes the properties of the 45-degree part.
8. The character at 315 degrees takes the properties of the 135-degree part.

In this way, after extracting the character attributes from the eight directions and performing bitwise operations, we can concatenate them into a new complete 32-bit integer. By looking up a table, we can determine the character corresponding to this new integer (if it’s 0, then it’s an empty character, indicating no intersecting characters).

This allows us to obtain the character at the center point. There’s no need for complex calculations or caching.

The current code uses this algorithm.

Unicode character classification

• characters of length 1
• characters of length 2
• characters of length 0

The length mentioned here refers to the printed length of the characters, that is, the length seen by the eyes

Characters of length 1

Most unicode characters are characters with a length of 1, such as the commonly used tab character, ascii characters.

a b c d , . ┼ ┬ │

Characters of length 2

Characters with a typographical width of 2 refer primarily to East Asian pictographs and related special punctuation, as well as full-width characters.

你好啊！《》
안녕하세요
こんにちは

They need to occupy two grids in the UI interface. Then aligning them requires special fonts that align 2:1 with width 1 characters.Here is a commonly used font.

https://github.com/be5invis/Sarasa-Gothic/

These characters have a special property called East Asian Width. They are included in the unicode standard, so they can be used as a programming basis.

Links to the unicode standard: https://www.unicode.org/reports/tr11/tr11-40.html

In perl’s unicode documentation, corresponding properties are also provided to use.

This represents a wide character, occupying two spaces:

\p{EA=W}

This represents a full-width character, which also occupies two spaces:

\p{EA=F}

The above information can be found here:

https://perldoc.perl.org/perlunicook

https://perldoc.perl.org/perlunicode

Characters of length 0

In some languages, there are special characters whose string length is 1, but they do not occupy physical space on the interface, they will be attached to the previous characters.they are called nonspacing characters.Occurs in Thai and Arabic, as well as Hebrew

◌ั ◌ึ ◌ุ

Please look at the above characters, they cannot appear alone, they must be used in combination with the previous entity characters, and then they will appear above or below the previous characters.

These characters are called Nonspacing characters in the unicode standard, and then they have the following properties that can be used for programming

\p{gc:Mn}

To support Thai, or Arabic, or Hebrew, like East Asian languages, we also need a special font that can be aligned.In general, the system’s default monospaced font can align them

Overlay

After Asciio draws the elements, a user defined call back is called.

User defined callback

The callback receives an instance of Asciio as the first argument, you can use that instance to get elements, …

The callback return a list of 1character overlay in array references:

• x coordinate
• y coordinate
• character
• optional background color
• optional foreground color

Example list:

[ 0, 0, 'T'],
[ 1, 0, 'e'],
[ 2, 0, 's'],
[ 3, 0, 't'],

Setting and resetting the callback

The callback is set by calling $asciio->set_overlays_sub. The simplest is to do it via a key binding.

'set overlays' =>
	[
	'0A0-o',
	sub
		{
		my ($asciio) = @_ ;

		$asciio->set_overlays_sub
			(
			sub { [0, 0, 'O'], [1, 0, 'K'] }
			) ;

		$asciio->update_display ;
		}
	],

Reset the callback

'reset overlays' => [ '000-o', sub { $_[0]->set_overlays_sub(undef) ; $_[0]->update_display ; } ],

Callback access to canvas

The callback can also have access to the canvas, but don’t

Arguments:

• $asciio
• $UI_type, set to GUI/TUI
• $gc
• $widget_width
• $widget_height
• $character_width
• $character_height

Example: draw and overlay and a filled rectangle above the mouse pointer

sub click_element_overlay
{
my ($asciio, $UI_type, $gc, $widget_width, $widget_height, $character_width, $character_height) = @_ ;

# draw directly
if($UI_type eq 'GUI')
	{
	my $surface = Cairo::ImageSurface->create('argb32', 50, 50) ;
	my $gco = Cairo::Context->create($surface) ;

	my $background_color = $asciio->get_color('cross_filler_background') ;
	$gco->set_source_rgb(@$background_color) ;

	$gco->rectangle(0, 0, $character_width, $character_height) ;
	$gco->fill() ;

	$gc->set_source_surface($surface, ($asciio->{MOUSE_X} - 1 ) * $character_width, ($asciio->{MOUSE_Y} - 1) * $character_height);
	$gc->paint() ;
	}

# send a list of characters to draw
my @overlays = map { [ $asciio->{MOUSE_X} + $_->[0], $asciio->{MOUSE_Y} + $_->[1], $_->[2] ] } @$click_element_overlay ;

@overlays
}

Callback hide/show mouse

Hide and show the mouse pointer, useful if you draw objects that are moved around.

sub callback_enter { my ($asciio) = @_ ; $asciio->hide_cursor ; ... }

sub callback_escape { my ($asciio) = @_ ; $asciio->show_cursor ; ... }

Functionality Log

Freeze Element [30 Dec 2025]

Watch video | Bindings

Graph Selection [1 Jan 2026]

Watch video | Bindings

Search And Replace [8 Jan 2026]

Watch video | Bindings

Spellchecking [8 Jan 2026]

Snapshot | Bindings

MACRO Bindings [14 jan 2026]

Bindings Documentation

Markdown Table Renderer [21 jan 2026]
